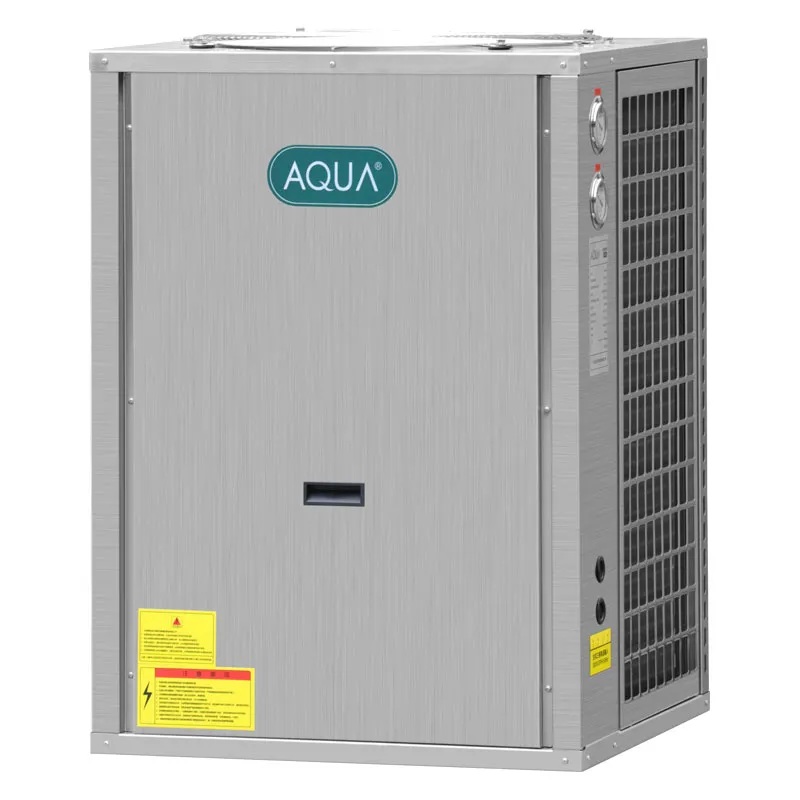

V Heat Pump

Name: V Heat Pump
Brand: Guangzhou Chuangdi M & E Technology Co., Ltd.
Availability: InStock
Rating: 4.4 (1 reviews)

It is mainly composed of four core components: evaporator, compressor, condenser and expansion valve. Through the continuous cycle process of the refrigerant evaporating (absorbing heat from the environment), compressing, condensing (releasing heat), throttling, and evaporating again, it transfers the heat from the environment to the water. It uses an anti-corrosion pure titanium heat exchanger, a low-noise compressor and environmentally friendly refrigerant, which makes it operate quietly while being energy-efficient and highly effective. Its housing is made of anti-ultraviolet powder-coated paint galvanized sheet or customizable stainless steel 304 shell, which is both beautiful and durable, while being corrosion-resistant and anti-aging. In addition, it can automatically control temperature and defrost, operate 24/7, and has multiple safety protections. It is suitable for heating various swimming pools.

Inquire Now >> DOWNLOAD PDF >>



Features of V Heat Pump

Compact and beautiful structure, uniform air flow distribution, high heat exchange efficiency.
All day long operating and not affected by bad weather.
High-efficiency pure titanium heat exchanger, corrosion-resistant.
Automatic heating, automatic defrosting. Automatically controls heating mode, energy-saving and environmentally friendly.
Multiple protections, safe and reliable. Built-in water flow protection, compressor exhaust temperature protection, compressor high and low pressure protection compressor over current, power supply phase loss protection (three-phase model only), winter anti-freezing protection.
Suitable for heating needs in various places.

Application of V Heat Pump

1. Private swimming pool

Delivers a consistently comfortable water temperature, operates quietly and stably, and elevates the overall swimming experience.

2. Commercial swimming pool

Utilize its characteristics of high efficiency, energy saving and wide temperature range operation to meet the needs of a large number of guests for swimming pool water temperature and reduce operating energy.

3. Public swimming pool

It can meet the personnel flow and water temperature requirements of the public swimming pool. It is not only energy-saving and environmentally friendly, but also provides multiple safety protection functions. It can operate 24/7 and ensure a comfortable experience with intelligent constant temperature control.

Specification of V Heat Pump

Normal Temperature Type

Model			V-030N	V-050N	V-070N	V-100N


Rated Heating (A24℃/ W26℃)	Heating Capacity	kW	15.0	25.0	35.0	42.0
	COP	W/W	5.6	5.2	5.2	5.2
	Power	kw	2.7	4.8	6.7	8.1
	Current	A	12.2	8.2	11.5	13.8
Nominal Heating (A20C/ W26℃)	Heating Capocity	kW	13.1	22.9	32.3	38.7
	COP	W/W	4.8	4.8	4.8	4.8
	Power	kw	2.7	4.8	6.7	8.1
	Current	A	12.4	8.1	11.5	13.8
Power Supply		/	220V/~/50Hz	380V/3N~/50Hz
Max. Current Input		A	17	11	14	17
Max. Power Input		kW	3.7	6.2	7.8	9.5
Compressor Type		/	Rotary	Fully enclosed scroll
Water Pressure Drop		kPa	30	36	41	42
Noise		dB(A)	58	60	62	62
Conection Size(PVC)		mm	DE50 Union	DE50 Union	DE50 Union	DE50 Union
Water Flow		m³/h	5	8	10	13
Refrigerant		/	R410A
Operating Temperoture Range		℃	-12~45
Dimensions(L°WH)		mm	705654 915	855804965	8558041065	8558041165
Weight		kg	105	150	160	175

Rated Heating Condition: Outdoor Ambient Temp. (DB/WB): 24°C/19°C, Water Temp. (In): 26°C.
Nominal Heating Condition: Outdoor Ambient Temp. (DB/WB): 20°C/15°C, Water Temp. (In): 26°C.
The data above is for reference only. For model specifications, please refer to the nameplate on the unit.

Low Temperature Type

Model			V-030N(E)	V-050N(E)	V-070N(E)	V-080N(E)


Heating Condition 1 (A20℃/W26℃)	Heating Capocity	kW	13.1	22.9	32.3	38.7
	COP	W/W	4.8	4.8	4.8	4.8
	Power	kW	2.7	4.8	6.7	8.1
	Current	A	12.4	8.1	11.5	13.8
Heating Condition 2 (A7℃/W26℃)	Heating Capocity	kW	11.2	20.5	25.8	29.2
	COP	W/W	4.35	4.35	4.35	4.35
	Power	kw	2.6	4.7	5.9	6.7
	Current	A	11.7	8.0	10.1	11.5
Heating Condition 3 (A2℃/W26℃)	Heating Capacity	kw	10.8	19.5	24.2	27.6
	COP	W/W	4.13	4.13	4.13	4.13
	Power	kw	2.6	4.7	5.9	6.7
	Current	A	11.9	8.1	10.0	11.4
Heating Condition 4 (A-12℃/W26℃)	Heating Capacity	kw	8.1	14.3	18.1	20.6
	COP	W/W	3.1	3.1	3.1	3.1
	Power	kw	2.6	4.6	5.8	6.6
	Current	A	11.9	7.9	10.0	11.3
Power Supply		/	220V/~/50Hz	380V/3N~/50Hz
Max. Current Input		A	17	11	14	16
Max. Power Input		kW	3.7	6.2	7.8	9.0
Compressor Type		/	Rotary	Fullyenclosed scroll
Water Pressure Drop		kPa	30	36	41	42
Noise		dB(A)	58	60	62	62
Connection Size(PVC)		mm	DE50 Union	DE50 Union	DE50 Union	DE50 Union
Water Flow		m³/h	5	8	10	12
Refrigerant		/		R410A
Operating Temperature Range		C		-30	-45
Dimensions (LWH)		mm	705654915	855804965	8558041065	8558041165
Weight		kg	108	155	165	180

Heating Condition 1: Outdoor Ambient Temp. (DB/WB): 20°C/15°C, Water Temp. (In): 26°C.
Heating Condition 2: Outdoor Ambient Temp. (DB/WB): 7°C/6°C, Water Temp. (In): 26°C.
Heating Condition 3: Outdoor Ambient Temp. (DB/WB): 2°C/1°C, Water Temp. (In): 26°C.
Heating Condition 4: Outdoor Ambient Temp. (DB/WB): -12°C/-14°C, Water Temp. (In): 26°C.
The data above is for reference only. For model specifications, please refer to the nameplate on the unit.
