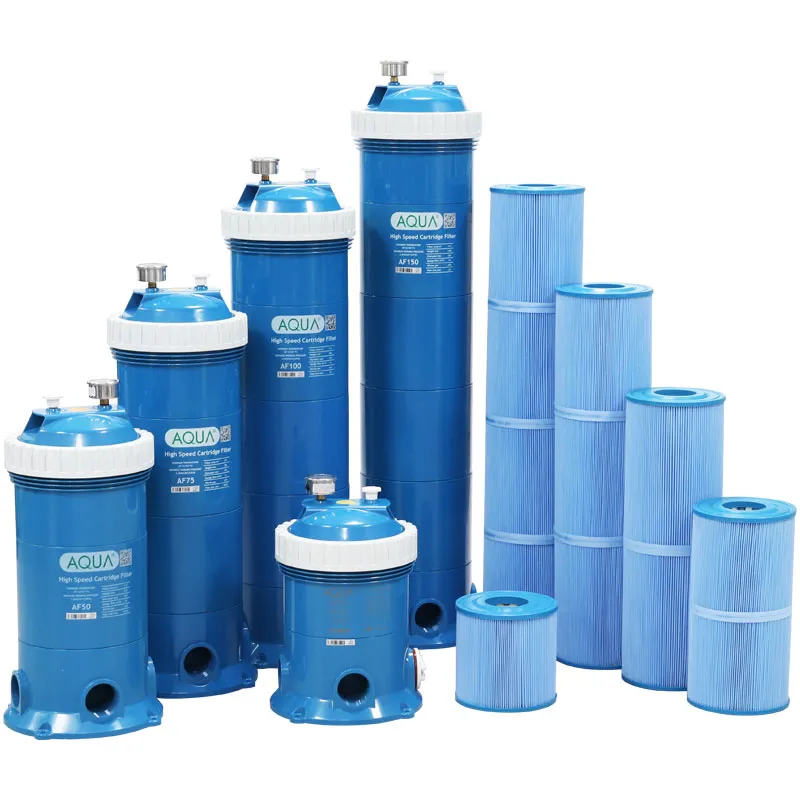

AF Cartridge Filter

Name: AF Cartridge Filter
Brand: Guangzhou Chuangdi M & E Technology Co., Ltd.
Availability: InStock
Rating: 4.4 (1 reviews)

AF cartridge filter is made of anti-ultraviolet material and equipped with imported mildew-proof and antibacterial paper core, which is durable and has a long service life. It is specially designed for the water-sensitive filtration needs of all pools containing salt, mineral salts and fresh water. It is equipped with a spiral exhaust valve to make it easier to discharge the gas in the tank, and at the same time, it can exhaust automatically with the internal exhaust pipe. It not only has a heavy duty lock ring design for easy paper core replacement, but also provides two inlet and port options for convenient and flexible installation. It is the best choice for swimming pool & SPA or home water use, no backwashing, easy maintenance.

Inquire Now >> DOWNLOAD PDF >>



Features of AF Cartridge Filter

Maximum working pressure: 250Kpa/36psi/2.5bar
Maximum temperature: 40°C
Compact structure, light and flexible.
UV resistant tank.
Easy access to cartridge element via heavy duty lock ring. High quality pressure gauge for easy inspection of operation pressure.
Filter backwash is not required.
The spiral exhaust valve makes it easier to discharge the gas in the tank, and here is an exhaust pipe inside to achieve automatic exhaust.

Application of AF Cartridge Filter

1. Villa Private Swimming Pool

Suitable for 50-150㎡ swimming pools, cartridge filtration accuracy of 5μm, water clarity improved by 40%.

2. Hotel Roof Swimming Pool

UV protective shell, weighs only 8kg, saves load-bearing space, installation height reduced by 30%.

3. Spa Pool

Chlorine-resistant material, combined with silver ion disinfection, water sterility compliance rate reaches 99.8%.

4. Small Children's Swimming Pool

Cartridge can be removed with one hand, replacement takes only 10 minutes, maintenance efficiency increased by 60%.

5. Hot Spring Resort Cabin

Temperature resistant up to 40℃, compatible with salt/mineral water quality, saves 50% water throughout the year without backwashing.

Specification of AF Cartridge Filter

Model	Connection Size	Pump	Flow	Filter Area	Aicurtiacy	A	B	C	D
		Pump	Flow	Filter Area	Aicurtiacy	A	B	C	D
		(W)	(m³/h)	(m²)	(μm)	(mm)	φ(mm)	(mm)	(mm)
AF25	DN40	250-370	5.5	2.25	≤20	368.3	225	184.5	183
AF50	DN40	550-750	11.4	4.63	≤20	548.3	225	364.5	183
AF75	DN40	750-1100	17.0	7.0	≤20	728.3	225	544.5	183
AF100	DN50	1100-1500	22.9	9.4	≤20	908.3	225	724.5	183
AF150	DN50	1100-2200	33.4	13.72	≤20	1088.3	225	904.5	183
AF200	DN50	1100-2200	40.9	16.82	≤20	1268.3	225	1091.0	183
