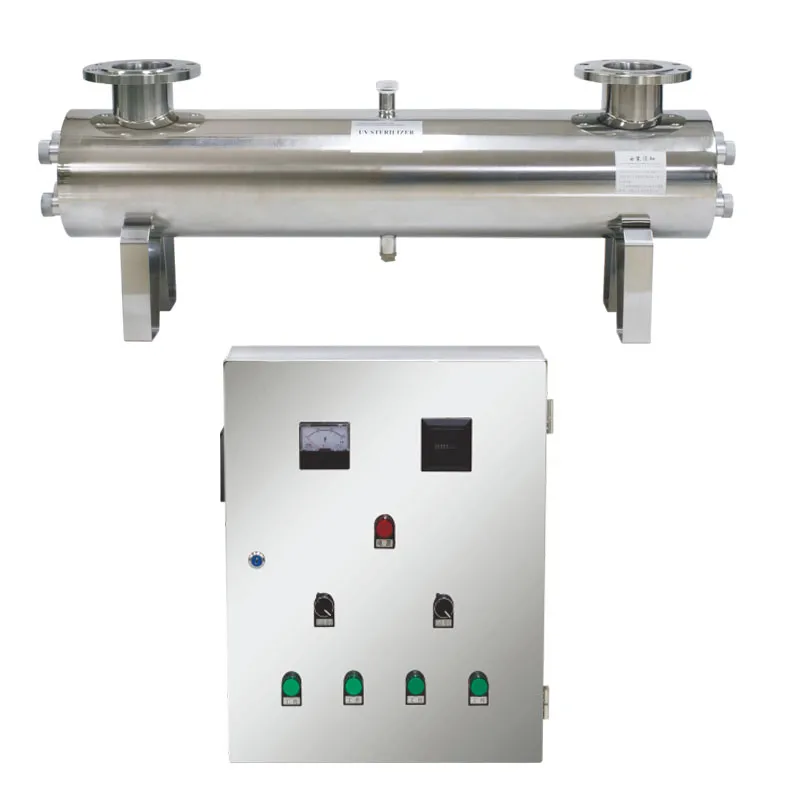

UVF Stainless Steel UV Sterilizer

Built with durable stainless steel construction, the AQUA UV disinfection unit uses advanced ultraviolet sterilization to deliver clean, safe water without chemicals. By damaging the genetic material of harmful microbes, it quickly reduces biological contamination and maintains stable water quality over time. This environmentally friendly system is widely applied in pool circulation, landscape water management, industrial cooling treatment, seawater desalination, and small-flow water disinfection. Its sturdy build, corrosion resistance, and eco-friendly operation make it a highly adaptable solution for a variety of water treatment projects.

Features of UVF Stainless Steel UV Sterilizer

1. Broad Application Versatility

Ideal for a wide range of water treatment applications—including pools, landscape water features, cooling systems, seawater desalination, and small-flow disinfection—delivering flexible and reliable purification across diverse scenarios.

2. Eco-Friendly Physical Disinfection

Utilizes UV light to destroy microbial DNA without chemical additives, preventing secondary pollution and ensuring a safe, environmentally friendly approach to water treatment.

3. Premium Core Components

Equipped with high-performance UV lamps, high-transmittance quartz sleeves, and stable electronic ballasts to ensure consistent and efficient disinfection over time.

4. Durable Stainless Steel Construction

Built with a corrosion-resistant 304/316 stainless steel reactor and housing, designed to withstand demanding water environments and deliver long-term, reliable operation.

5. Separate Standard Control Box

Includes a standalone control box for easy installation and straightforward daily operation, offering flexibility without the complexity of advanced smart functions.


Application of UVF Stainless Steel UV Sterilizer

1. General Pool Water Disinfection

Delivers continuous, non-chemical sterilization for indoor and outdoor pools, improving water clarity and protecting bather health.

2. Decorative Water System Care

Stabilizes water quality in gardens, ponds, and water features, controlling algae and bacteria while maintaining a clean visual appearance.

3. Cooling Water System Protection

Performs reliable microbial control for industrial and HVAC cooling loops, extending equipment life and improving operational efficiency.

4. Post-Treatment in Seawater Desalination

Provides effective final-stage disinfection to ensure safe, clean water production in desalination plants and systems.

5. Compact Water Disinfection Solutions

Serves small-flow, localized water treatment needs such as private tanks, small commercial units, and decentralized water points.


Specification of UVF Stainless Steel UV Sterilizer

ModelVoltageWorking PressureFlowLamp ConfigurationConnection SizeDimensions
(V/Hz)(Mpa)(m³/h)(W)(mm)
UVF-240220/500.630120*2DN651260*210*360
UVF-360220/500.640120*3DN801260*210*375
UVF-480220/500.650120*4DN1001260*250*450
UVF-600220/500.665120*5DN1001260*250*450
UVF-720220/500.675120*6DN1001260*250*450
UVF-960220/500.690120*8DN1501260*300*555
UVF-1080220/500.6100120*9DN1501260*300*555
UVF-1200220/500.6120120*10DN1501260*300*555
UVF-1920220/500.6180320*6DN2001665*350*665
UVF-2560220/500.6220320*8DN2501665*440*680
UVF-3520220/500.6360320*11DN2501665*440*680
UVF-4800220/500.6480320*15DN2501665*520*815
UVF-6400220/500.6600320*20DN3501665*600*1060
UVF-7040220/500.6660320*22DN3501665*600*1060
