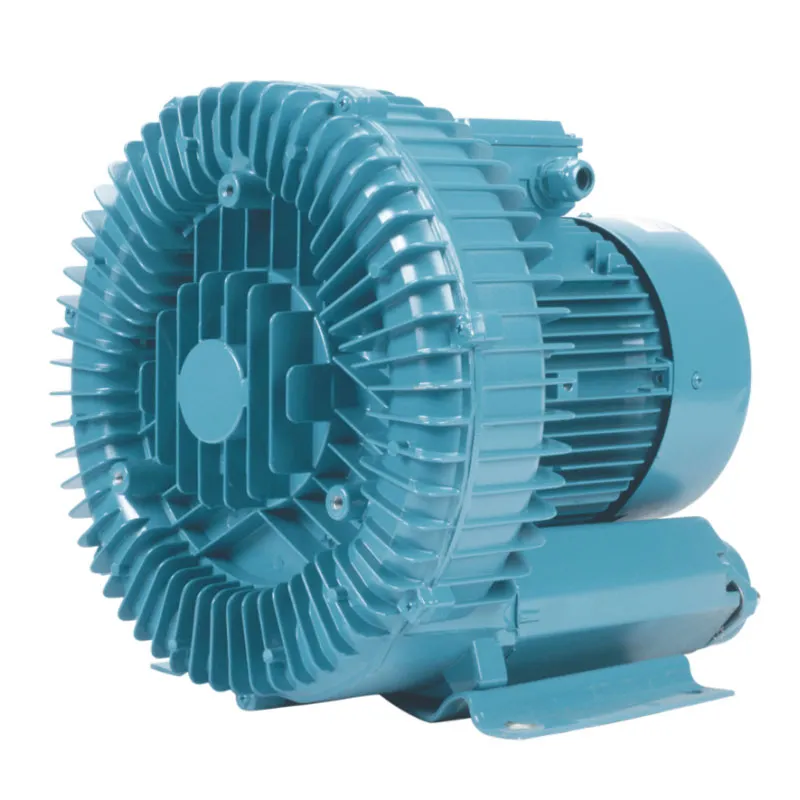

AQUA's pool air pump is a professional-grade aeration solution engineered for reliable performance in aquatic environments. Built with premium materials and specialized structural designs, it delivers steady airflow while ensuring durability, low vibration, and efficient heat dissipation. Ideal for enhancing water quality in pools and spas, it combines robust motor protection with user-friendly, low-maintenance features to meet both residential and commercial aeration needs.
1. Advanced Shaft Seal Protection
Uses fluorine plastic or imported maintenance-free skeleton shaft seals to isolate the motor, preventing water and moisture intrusion for long-term, hassle-free operation.
2. Reliable Motor Design
Equipped with a squirrel cage motor featuring IP54 protection and Level B insulation, ensuring safe operation in damp poolside environments.
3. Low-Vibration Operation
Comes with a vibration-absorbing baseboard that reduces operational shaking, minimizing noise and extending component lifespan.
4. Efficient Motor Housing
Adopts a die-cast aluminum motor housing for fast heat dissipation and lightweight portability, balancing performance with easy installation.
5. High-Efficiency Impeller
Features a side-stream high-efficiency aluminum metal impeller to deliver consistent, powerful airflow for optimal water aeration.
6. Corrosion-Resistant Cavity
The blower cavity surface is coated with anticorrosive paint, protecting against pool chemicals and humidity to extend the product's service life.
1. Private Swimming Pools
Provides steady aeration to keep home pool water fresh, preventing stagnation and improving overall water quality for family leisure use.
2. Commercial Swimming Pools
Meets the large-scale aeration demands of public pools, ensuring consistent oxygen levels even during high-traffic usage periods.
3. SPA Pools
Delivers gentle, reliable airflow to enhance the relaxation experience in spa environments, without disrupting tranquil atmospheres.
| Model | Horsepower | Voltage | Max Pressure | Normal Pressure | Max Air Flow | Weight | Length | Width | Height |
| (HP) | (V) | (Kpa) | (Kpa) | (m³/h) | (Kg) | (mm) | (mm) | (mm) | |
| AAP-100 | 1 | 220 | 16 | 11 | 100 | 12.5 | 294 | 288 | 315 |
| AAP-200 | 2 | 220 | 19 | 14 | 150 | 14.5 | 294 | 288 | 315 |
| AAP-300 | 3 | 380 | 25 | 16 | 200 | 33 | 345 | 360 | 371 |
| AAP-500 | 5 | 380 | 32 | 23 | 235 | 37 | 401 | 384 | 403 |
| AAP-750 | 7.5 | 380 | 35 | 26 | 320 | 65 | 410 | 392 | 404 |
| AAP-1000 | 10 | 380 | 42 | 31 | 400 | 121 | 472 | 418 | 453 |
