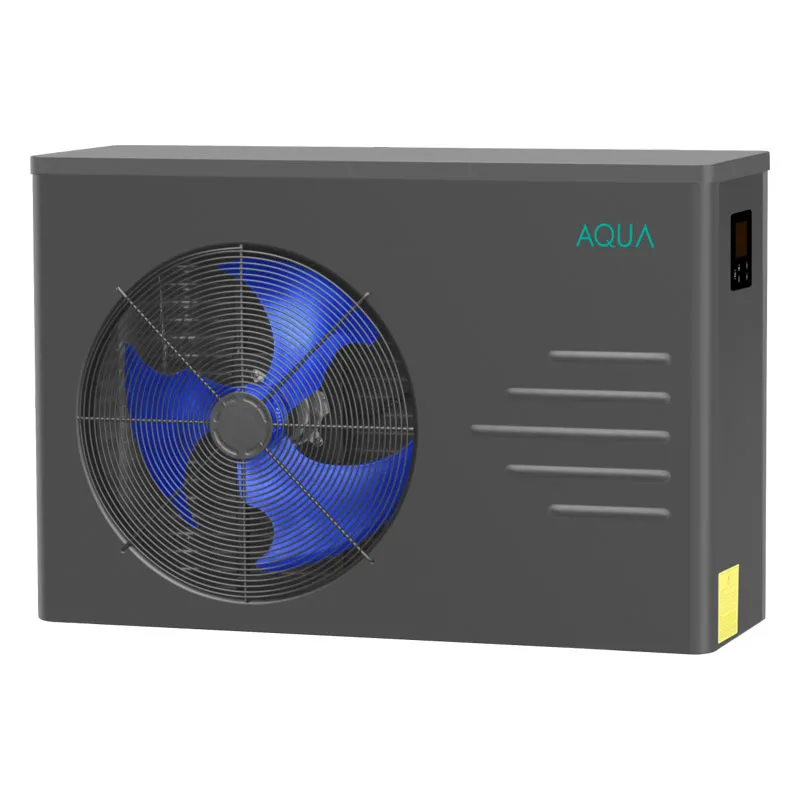

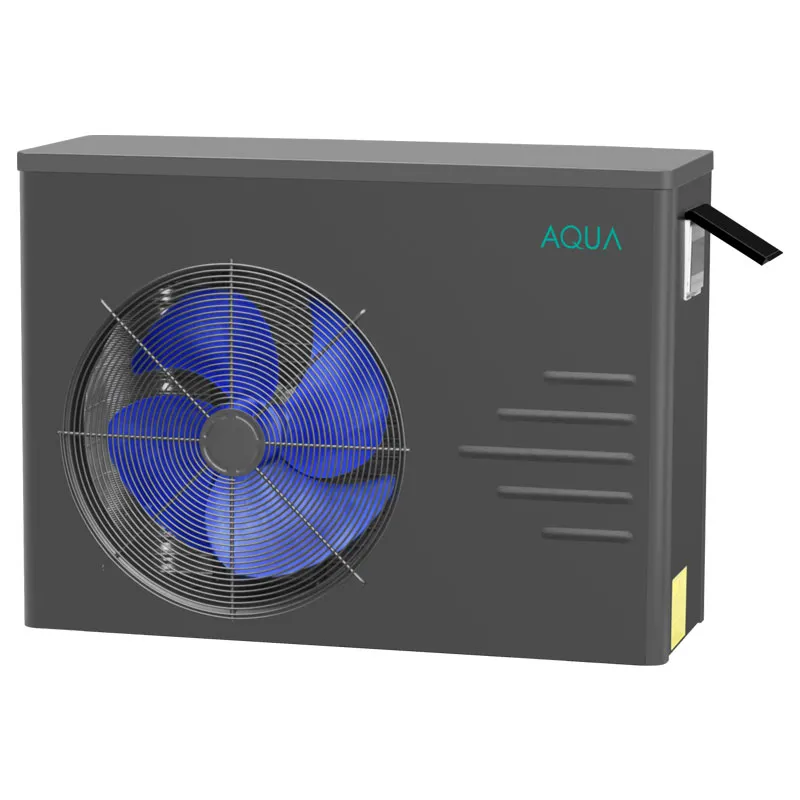

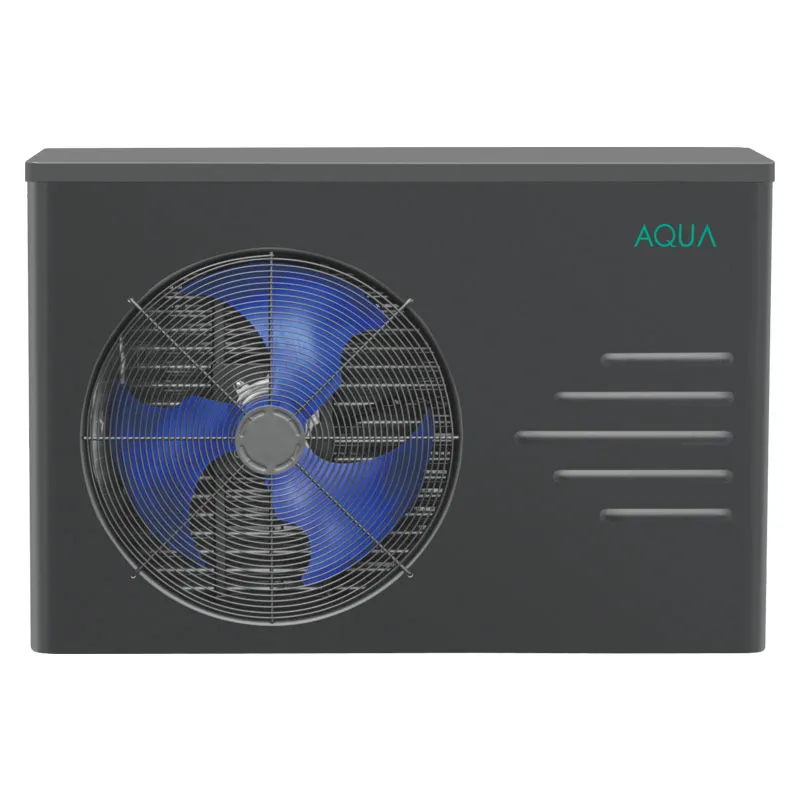

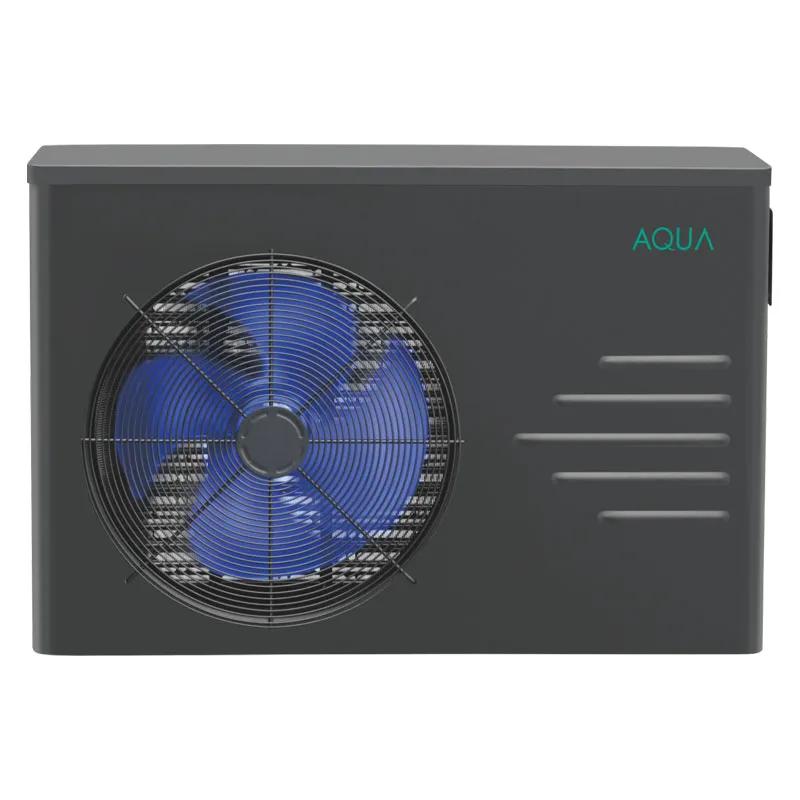

AQS-F Inverter Heat Pump

Name: AQS-F Inverter Heat Pump
Brand: Guangzhou Chuangdi M & E Technology Co., Ltd.
Availability: InStock
Rating: 4.4 (1 reviews)

Equipped with a DC variable frequency compressor, it is highly efficient, energy-saving, and operates quietly and comfortably. The high-efficiency pure titanium threaded tube heat exchanger heats up quickly, and the electronic expansion valve achieves precise throttling control. The four-way valve accelerates defrosting and reduces heat loss. Flexible settings, automatic heating mode is energy-saving and low-noise, and supports all-weather operation. Built-in multiple protections (water flow, temperature, pressure, current and anti-freeze) ensure safety and reliability and improve equipment durability.

Inquire Now >> DOWNLOAD PDF >>



Features of AQS-F Inverter Heat Pump

DC inverter compressor, high efficiency, energy saving, quiet and comfortable.
High-efficiency pure titanium tube heat exchanger with external thread, the temperature rises rapidly.
Electronic expansion valve, the throttling control is more precise.
Four-way valve to switch, the defrosting is faster and the heat loss is reduced.
Flexible setting, automatic control of heating mode, energy saving and low noise, all-weather operation.
Multiple protections, safe and reliable, built-in water flow protection, compressor exhaust temperature protection, compressor high and low pressure protection, compressor over current, winter anti-freezing protection.

Application of AQS-F Inverter Heat Pump

1. Commercial swimming pool

Utilize its characteristics of high efficiency, energy saving and wide temperature range operation to meet the needs of a large number of guests for swimming pool water temperature and reduce operating energy consumption costs.

2. Private swimming pool

Provides a comfortable water temperature environment for private swimming pools, with low noise and stable operation, improving the swimming experience.

3. Public swimming pools

To cope with the flow of people and water temperature needs in different periods and seasons, precise temperature control is carried out through frequency conversion technology to ensure the water temperature of the swimming pool while reducing the operation and maintenance costs of public swimming pools.

Specification of AQS-F Inverter Heat Pump

Model		AQS-015-HF	AQS-030-HF	AQS-050-HF

		AQS-015-F	AQS-030-F	AQS-050-F
Ambient Condition: Temperature 26℃, Humidity 80%, Water temperature 28℃
Heating Capacity	KW	9	16	24
COP Range	W/W	5.5~10.2	5.8~11	5.8~11
100% Heating COP	W/W	5.50	5.80	5.80
Ambient Condition: Temperature 15℃, Humidity 70%, Water temperature 28℃
Heating Capacity	KW	6	11	16.5
COP Range	W/W	4.5~6	4.6~6.2	4.6~6.2
100% Heating COP	W/W	4.50	4.60	4.60
Ambient Condition: Temperature 35℃, Humidity 80%, Water temperature 7℃
Cooling Capacity	KW	4.5	7	12
Compressor	/	DC Inverter Compressor
Power Supply	/	220V/1Ph/50Hz
Power Input	KW	0.32~1.64	0.54~2.92	0.81~4.36
Current	A	1.45~7.45	2.45~13.27	3.68~19.81
Heat Exchanger	/	External Threaded Titanium Tube Heat Exchanger
Noise (1m)	dB(A)	≤50	≤52	≤53
Connection Size	mm	DE50 Union	DE50 Union	DE50 Union
Water Flow	m³/h	3~4	5~7	9~11
Refrigerant	/	R410A
Dimensions (LWH)	mm	870350670	1000400750	1050450810
Weight	Kg	50	65	78
Operating Temperature Range	℃	-12~45

The data above is for reference only. For model specifications, please refer to the nameplate on the unit.
