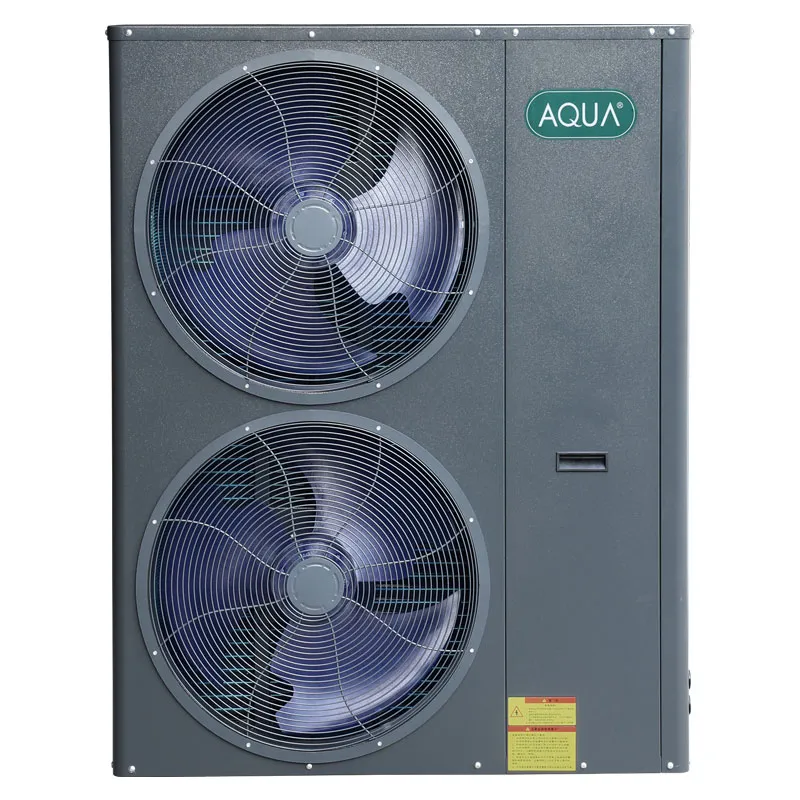

V/B Side Air Outlet Type Heat Pump

Name: V/B Side Air Outlet Type Heat Pump
Brand: Guangzhou Chuangdi M & E Technology Co., Ltd.
Availability: InStock
Rating: 4.4 (1 reviews)

AQUA V/B side air outlet heat pump is fitted with high-performance core parts that deliver efficient air-to-water heat transfer via a refrigeration cycle. It adopts a corrosion-resistant pure titanium heat exchanger, silent compressor and eco-friendly refrigerant to ensure low-noise performance and strong energy efficiency. The unit features a UV-resistant powder-coated galvanized steel casing with a side air outlet, combining elegant appearance, strong durability and anti-aging properties. It supports automatic temperature control, smart defrosting and 24/7 stable operation, with complete safety protection for all kinds of swimming pool heating applications.

Inquire Now >> DOWNLOAD PDF >>



Features of V/B Side Air Outlet Type Heat Pump

Features a high-efficiency pure titanium heat exchanger for excellent corrosion resistance.
Supports automatic heating and defrosting, with energy-saving modes to ensure continuous hot water supply.
Built-in comprehensive protections: water flow safety, compressor discharge temperature safety,overcurrent safeguards, phase sequence protection (for 3-phase models), and antifreeze function ect.
Adapts to the heating requirements of diverse venues and applications.

Application of V/B Side Air Outlet Type Heat Pump

1. Private Villa Pools

Operates quietly, maintains constant comfortable temperature year-round, and enhances the home swimming experience.

2. School Pools

Highly efficient and energy-saving, it meets the continuous heating needs for daily teaching and recreational swimming.

3. Hospital/Sanatorium Pools

Precise temperature control ensures safety and comfort during rehabilitation training and hydrotherapy.

4. Hot Spring/SPA Pools

Equipped with high-efficiency pure titanium heat exchangers, it resists chloride ion corrosion and is suitable for special water quality projects such as hot springs and spas.

Specification of V/B Side Air Outlet Type Heat Pump

Model			V-30N-Sw	V-50N-SW	V-70N-SW	V-100N-SW	B-12-SW	B-15-SW	B-20-SW


Rated Heating (A24℃/W26℃)	Heating Capacity	kW	15.0	25	35.0	42.0	56.0	75.0	90.0
	COP	W/W	5.6	5.2	5.2	5.2	5.6	5.6	5.6
	Power	kW	2.7	4.8	6.7	8.1	10.0	13.4	16.1
	Current	A	12.2	8.2	11.5	13.8	17.1	22.9	27.4
Nominal Heating (A20℃/W26℃)	Heating Capacity	kW	13.1	22.9	32.3	38.7	47.8	64.2	77.1
	COP	W/W	4.8	4.8	4.8	4.8	4.8	4.8	4.8
	Power	kw	2.7	4.8	6.7	8.1	10.0	13.4	16.1
	Current	A	12.4	8.1	11.5	13.8	17.0	22.8	27.4
Power Supply		/	220V/~/50Hz	380V/3N~/50Hz
Max. Current Input		A	17	11	14	17	23	28	32
Max. Power Input		kw	3.7	6.2	7.8	9.5	12.9	15.7	17.9
Compressor Type		/	Rotary	Fully enclosed scroll
Wato Presure Drop		kPa	30	36	41	42	43	45	45
Noise		dB(A)	58	60	62	62	65	68	68
Connection Size(PVC)		mm		DE50 Union	DE50 Union	DE50 Union	DE75 Flange	DE75 Flange	DE75 Flange
Wote Fbw		m³/	5	8	10	13	16	20	25
Refrigcant		/	R410A
Operating Temperoture Range		℃	-12-45
Dimensions (LWH)		mm	1050450810	10345061368	10345061368	10345061368	18006351598	18006351598	18006351598
Weight		kg	102	142	156	172	285	302	323

Rated Heating Condition: Outdoor Ambient Temp. (DB/WB): 24°C/19°C, Water Temp. (In): 26°C.
Nominal Heating Condition: Outdoor Ambient Temp. (DB/WB): 20°C/15°C, Water Temp. (In): 26°C.
The data above is for reference only. For model specifications, please refer to the nameplate on the unit.
