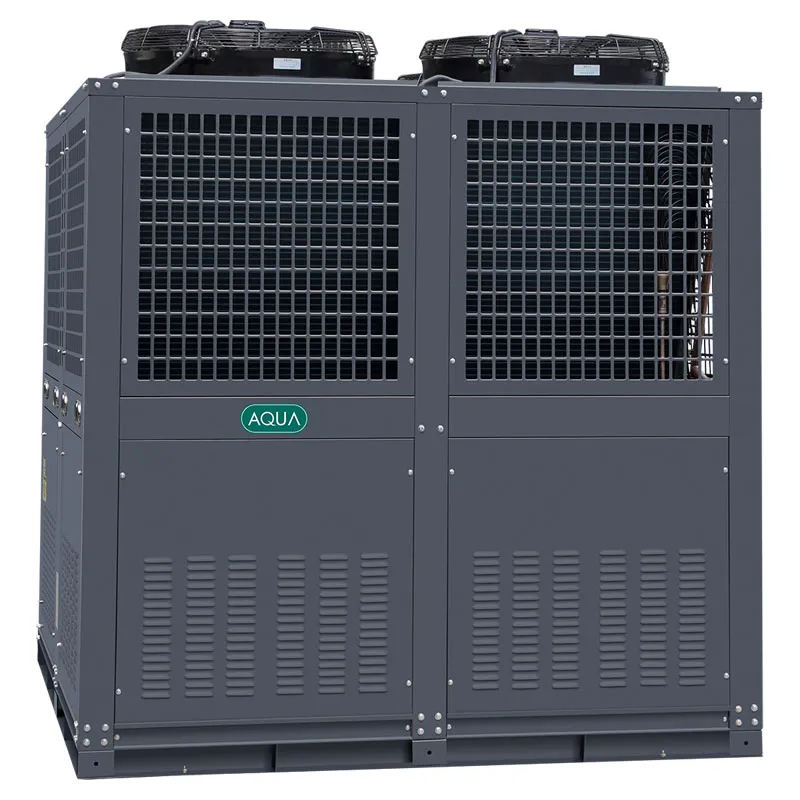

H Mariculture Heat Pump

Name: H Mariculture Heat Pump
Brand: Guangzhou Chuangdi M & E Technology Co., Ltd.
Availability: InStock
Rating: 4.4 (1 reviews)

It uses a pure titanium tube heat exchanger, which is not only resistant to acid and alkali corrosion, but also does not scale and cause pollution. It can precisely maintain a constant temperature, is highly energy-efficient, has zero carbon emissions, and is safe and reliable. It is suitable for various aquaculture scenarios such as fish and shrimp, ensuring a stable water environment while enhancing the efficiency of aquaculture.

Inquire Now >> DOWNLOAD PDF >>



Features of H Mariculture Heat Pump

Pure titanium tube heat exchanger, acid, alkali and corrosion resistant. The surface is not prone to oxide layer, does not pollute the media, does not scale, and is not prone to leakage.
0.5℃ Precise temperature control.
ECO Friendly, No CO2 emissions.
Highly efficient, energy-saving, safe and reliable.

Application of H Mariculture Heat Pump

1. Recirculating Aquaculture

Suitable for factory-style recirculating aquaculture systems, stabilizing water temperature to promote efficient fish and shrimp growth and increase productivity per unit area.

2. Aquaculture Seedling Production

Suitable for fish and shrimp fry hatching, providing precise temperature control to prevent fluctuations, ensuring larval survival rates and improving seedling production efficiency.

3. Greenhouses/Outdoor Ponds

Suitable for greenhouse/outdoor pond aquaculture, providing warmth in winter and coolness in summer, supporting cross-seasonal aquaculture and reducing the risks of extreme temperatures.

4. Seafood Tanks and Aquariums

Suitable for seafood tanks and aquariums, providing continuous constant temperature without polluting the water, ensuring the vitality of ornamental aquatic animals.

5. Low-Temperature Environments

Maintains suitable water temperatures even in cold regions, breaking geographical limitations and expanding the aquaculture range.

Specification of H Mariculture Heat Pump

Model			H-030	H-050	H-070	H-100	H-120	H-150	H-220	H-300	H-350


Cooling Condition (A35℃/W7℃)	Cooling Copoary	kW	8.5	14.8	20.9	29.8	36.0	42.8	58.0	70.0	85.0
	EER	W/W	3.1	3.1	3.1	3.1	3.1	3.1	3.1	3.1	3.1
	Power	kW	2.7	4.8	6.7	9.6	11.6	13.8	18.7	22.6	27.4
	Current	A	12.5	8.2	11.5	16.4	19.8	23.6	31.9	38.5	46.8
Heating Condition (A20C/W26C)	Heating Capocify	kW	13.1	22.9	32.3	45.8	55	64.2	86.0	106.7	128.4
	COP	WW	4.8	4.8	4.8	4.8	4.8	4.8	4.8	4.8	4.8
	Power	kw	2.7	4.8	6.7	9.5	11.5	13.4	17.9	22.2	26.8
	Current	A	12.4	8.1	11.5	16.3	19.6	22.8	30.6	37.9	45.7
Power Supply		/	220V/-/50Hz				380V/3N-/50Hz
Max. Current Input		A	18	13	17	25	27	32	45	58	72
Max. Power Input		kW	4.0	7.3	9.5	14.0	15.1	17.9	25.2	32.4	40.3
Compressor Type		/	Rotary				Fully enclosed scroll
Water Pressure Drop		kPa	30	36	41	42	43	45	45	52	58
Noise		dB(A)	58	60	62	62	65	68	68	70	70
Connection Size(PVC)		mm	DE50 Union	DE50 Union	DE50 Union	DE63 Union	DE63 Union	DE75 Flange	DE75 Flange	DE90 Flange	DE90 Flange
Water Flow		m³/h	5	8	10	13	16	20	25	30	35
Refrigerant		/					R410A
Operating Temperature Range		℃					-12-45
Dimensions(LWH)		mm	768709*868	8057501068	8708101268	14507801073	14809001660	15809001660	1926*1056+2190	212611062200	212611062200
Weight		kg	105	150	160	220	322	385	515	595	710

Cooling Condition: Outdoor Ambient Temp. (DB/WB): 35℃/24℃, Water Temp. (In): 12℃, Water Temp. (Out): 7℃.
Heating Condition: Outdoor Ambient Temp. (DB/WB): 20℃/15℃, Water Temp. (In): 26℃ Water Temp. (Out): 28℃.
The data above is for reference only. For model specifications, please refer to the nameplate on the unit.
