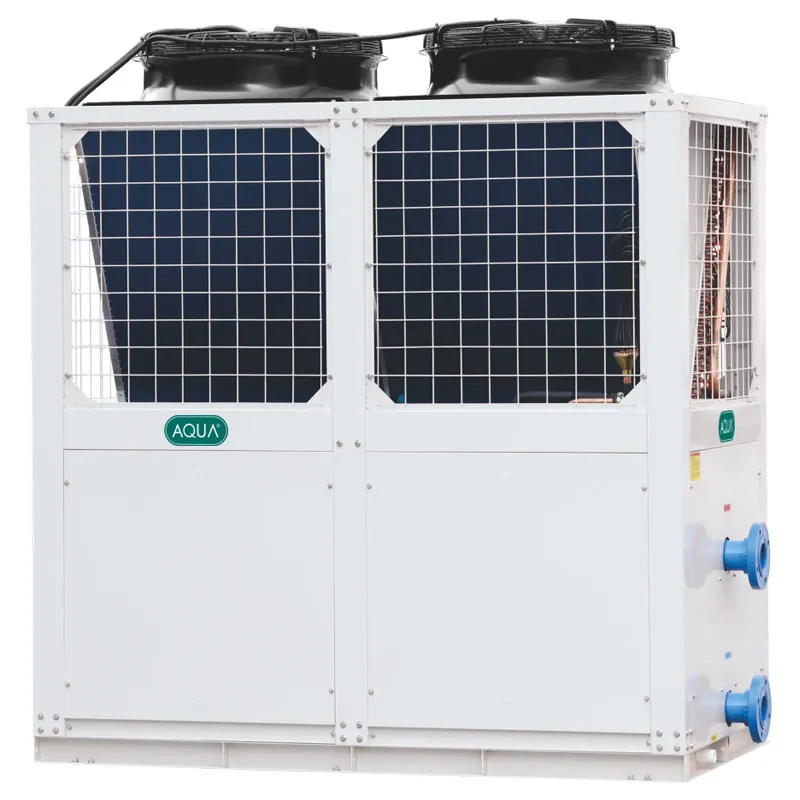

B-F Inverter Heat Pump

Name: B-F Inverter Heat Pump
Brand: Guangzhou Chuangdi M & E Technology Co., Ltd.
Availability: InStock
Rating: 4.4 (1 reviews)

It is designed to meet the constant temperature requirements of swimming pools, employing DC inverter technology for stable and efficient temperature control, and low-noise operation for greater energy savings. It uses reliable core components that are corrosion-resistant and easy to operate and maintain. Furthermore, it can operate in multiple modes, providing rapid and powerful heating. It is suitable for various swimming pool scenarios, efficiently achieving both constant water temperature and energy savings.

Inquire Now >> DOWNLOAD PDF >>



Features of B-F Inverter Heat Pump

DC frequency conversion technology, swimming pool heating and temperature control more energy-saving and efficient.
Large LED screen, display running status.
Intelligent mode operation, fast heating mode, energy-saving mode, strong heat mode 30% more heat than fixed frequency unit.
Late night silent mode operation, without disturbing people.

Application of B-F Inverter Heat Pump

1. Private Pools

Adopts full DC inverter technology for precise temperature control, ensuring comfortable water temperature all year round to meet daily swimming needs in villa courtyards.

2. SPA Pools

Features ±0.5℃ high-precision adjustment, satisfying the dual requirements of temperature sensitivity and comfort in spa pools.

3. Club Pools

Delivers rapid heating and stable constant temperature, adapting to high-frequency use and reducing energy costs.

4. Hotel Pools

Automatically switches to silent mode at night, avoiding noise disturbance to guests and improving the overall experience.

Specification of B-F Inverter Heat Pump

Model		B-175-F	B-200-F	B-350-F	B-400-F	B-600-F


Ambient Temp.: (DB/WB): 27°C/26°C, Water Temp. (In/Out): 26°C/28°C
Heating Capacity	KW	28-78	38-90	68-158	82-190	115-290
Heating COP	W/W	6.5-11.5	6.8-11.6	5.8-11.8	5.8-11.8	5.8-11.5
Heating Power Range	KW	3.2-14.3	6.3-18.2	8.5-32.5	9.2-35.2	15.2-45.5
Ambient Temp.: (DB/WB): 20°C/15°C, Water Temp. (In/Out): 26°C/28°C
Heating Capacity	KW	25-65	35-78	50-130	75-175	102-248
Heating COP	W/W	4.6-7.5	4.6-7.5	4.6-7.5	4.6-7.5	4.6-7.3
Heating Power Range	KW	4.2-12.8	5.6-16.5	7.8-29.5	8.8-32.5	14.3-42.3
Compressor	/	DC Inverter Scroll Type
Power Supply	/	380V/3N~/50Hz
Max. Current Input	A	28.2	40.2	68.8	72.0	87.1
Max. Power Input	KW	15.8	22.5	38.5	40.3	48.7
Noise	dB(A)	58	62	72	72	74
Connection Size	mm	DE63 Union	DE75 Flange	DE90 Flange	DE90 Flange	DE110 Flange
Water Flow	m³/h	13	22	28	42	58
Water Pressure Drop	kPa	45	48	53	58	60
Refrigerant	/	R410A
Dimensions (LWH)	mm	15809001660	15809001660	192610562190	212611062200	245013022260
Weight	Kg	185	256	582	720	946
Operating Temperature Range	℃	-15~48

The data above is for reference only. For model specifications, please refer to the nameplate on the unit.
