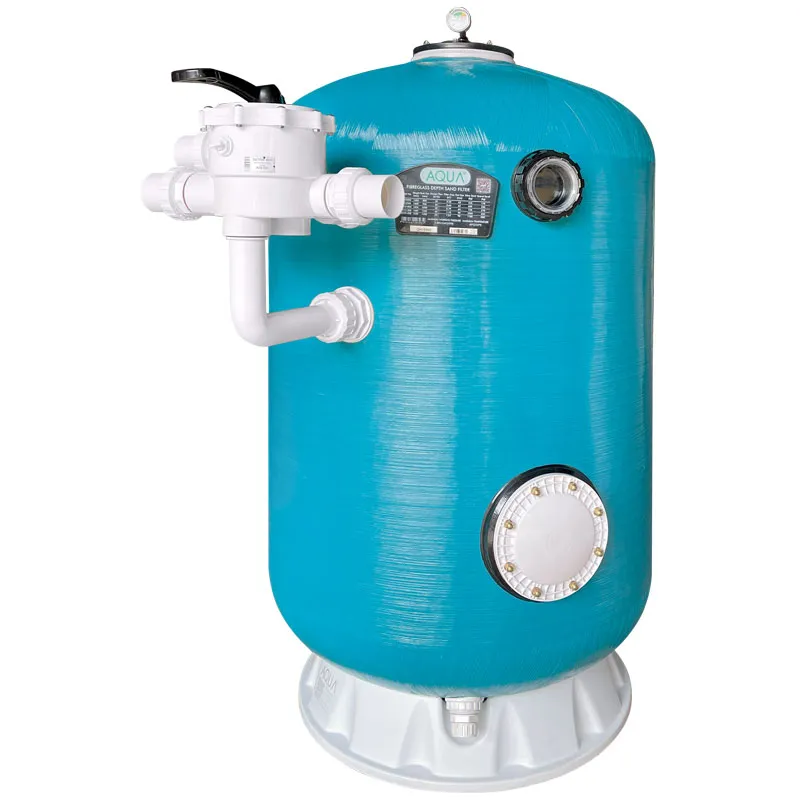

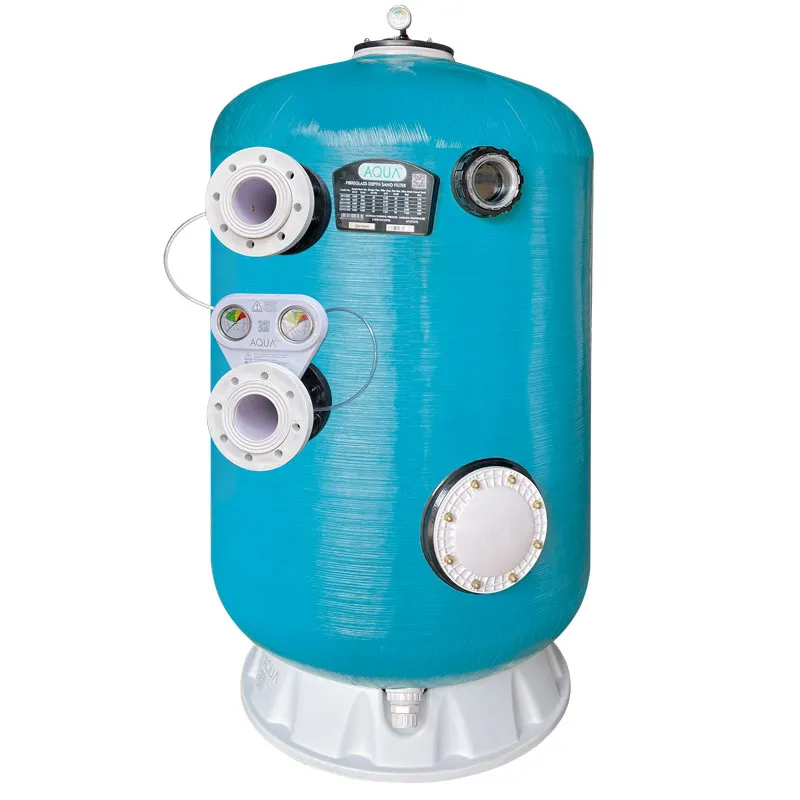

QSH Depth Sand Filters

QSH depth sand filter H is made of UV-resistant glass fiber and resin, which can resist chemical corrosion and be exposed to sunlight for a long time. It is equipped with a 2" multi-function valve, at the same time, it's sand bed depth is 0.8-1.2 meters. And it can filter deeply and intercept impurities efficiently, which is suitable for various swimming pools and spa facilities.

Inquire Now >> DOWNLOAD PDF >>



Features of QSH Depth Sand Filters

Maximum working pressure: 250Kpa/36psi/2.5bar, 400Kpa/58psi/4.0bar(Optional).
Maximum temperature: 50°C
Anti-UV protective layer of fiber glass wound reinforced filter tank.
The 0.8-1.2 meter deep filter bed improves the filtration effect.
The design of the water filter cap enables the filter bed to have excellent filtration capabilities while saving 25% of water during the backwash process.
Resistant to chemical corrosion.

Application of QSH Depth Sand Filters

1. Small and medium commercial swimming pools

Suitable for 200-500m² swimming pool, with sand bed depth of 0.8-1.2m and filtration precision of 20 μm.

2. Hotel spa pool

Temperature resistance of 50℃, chemical corrosion resistance, and cooperation with ozone system to realize aseptic water quality.

3. Landscape water system of resort

2" large diameter valve, improving the self-purification capacity of water body.

4. Villa Private Pool

UV-protected housing, stable at -10℃ to 50℃, virtually maintenance-free filter body block throughout the year.

5. Community Club Pool

Reduces backwash time to 8 minutes, saves 30 % of water and reduces operating costs.

Specification of QSH Depth Sand Filters

Model	Filter Dia	Height	Connection Size	Flow	Filter Area	Silica Sand

	(mm)	(mm)		(m³/h)	(m²)	0.5-0.8mm(kg)	1-2mm(kg)
QSH15800	800	1600	DN50	20.0	0.50	455	170
QSH15900	900	1600	DN50	25.6	0.64	585	230
QSH151000	1000	1600	DN50	31.6	0.79	720	270
QSH151200	1200	1600	DN50	40.0	1.13	1030	450
QSH20800	800	2100	DN50	15.0	0.50	770	170
QSH20900	900	2100	DN50	19.0	0.64	990	230
QSH201000	1000	2100	DN50	23.7	0.79	1220	270
QSH201200	1200	2100	DN50	30.0	1.13	1740	450

Model	φD(mm)	H(mm)	A(mm)	B(mm)	C(mm)	φE(mm)	F(mm)	φK(mm)	M(mm)	φN(mm)	φP(mm)	T(mm)	W(mm)

QSH15800	800	1600	700	150	220	40	520	180	1120	80	790	800	350
QSH15900	900	1600	700	150	220	40	520	180	1120	80	790	800	350
QSH151000	1000	1600	700	150	220	40	520	180	1120	80	790	800	350
QSH151200	1200	1600	700	180	220	40	600	180	1120	80	1010	800	350
QSH20800	800	2100	1000	150	220	40	520	180	1600	80	790	1250	400
QSH20900	900	2100	1000	150	220	40	520	180	1600	80	790	1250	400
QSH201000	1000	2100	1000	150	220	40	520	180	1600	80	790	1250	400
QSH201200	1200	2100	1000	180	220	40	600	180	1600	80	1010	1250	400
