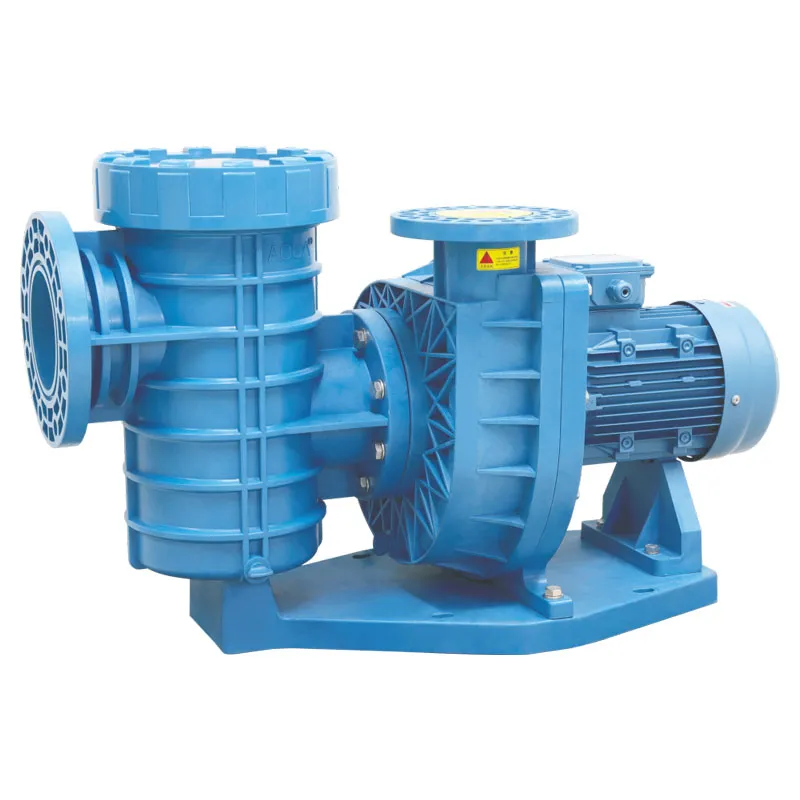

Engineered with outstanding flexibility, the AQUA pool filtration pump delivers stable and efficient water circulation for a wide range of water environments. It performs reliably in all kinds of swimming pools as well as high-temperature hot springs up to 70℃. Built to withstand a maximum working pressure of 6kg/cm², this unit combines quiet operation, strong water flow, and excellent resistance to heat and pressure, ensuring consistent filtration even under heavy-duty working conditions.
Equipped with a 1450 rpm motor and compatible with 380V 50/60Hz power supply, the pump also supports full customization to match various project requirements. Its rugged structure guarantees long-term stable performance, making it a professional and dependable solution for all kinds of water circulation systems.
Ultra-quiet operation with 4-pole 1450 rpm motor, producing 10dB lower noise than standard pool pumps.
Highly energy-saving design that reduces power consumption by up to 50%, with double the flow rate of conventional pumps at the same power level. The electricity saved within six months can cover the pump's cost.
Broad application scope, suitable for swimming pools, spas, hot springs, aquariums, and other water systems.
Exceptional service life with a 5-year motor warranty and a design life of more than 10 years.
Excellent corrosion resistance, featuring 316 stainless steel motor shaft and spring, plus Italian graphite mechanical seal.
Equipped with world-famous NSK bearings for low friction, stable performance, and maintenance-free operation.
IP55 waterproof grade and F-class insulation for safe and reliable motor operation.
Large-capacity strainer basket with a smooth interior for easy cleaning and long-lasting durability.
1. Residential Swimming Pools
The quiet 1450 rpm motor and IP55 protection create a comfortable and quiet environment for home use, while the 50% energy-saving function helps reduce long-term operating costs effectively.
2. Commercial Spas & Wellness Centers
With double flow rate under the same power and premium corrosion-resistant parts including 316 stainless steel components and Italian graphite seals, it ensures stable 24-hour circulation with minimal maintenance.
3. Hot Spring Venues
Supported by durable NSK bearings and F-class insulated motor, the pump adapts well to high-temperature water environments. The 5-year motor warranty provides extra assurance for long-term stable operation.
4. Public & Private Aquariums
Its high efficiency and anti-corrosion structure help maintain a stable and healthy water environment. The steady and gentle flow ensures safe and reliable circulation without affecting aquatic creatures.
| Model | Voltage | Power | Inlet | Outlet | Weight | L | A | B | C | D | |
| (V/Hz) | (kW) | (HP) | (Kg) | (mm) | (mm) | (mm) | (mm) | (mm) | |||
| ALB-550 | 380/50 | 4 | 5.5 | DN125 | DN80 | 50 | 810 | 481 | 441 | 365 | 402 |
| ALB-750 | 380/50 | 5.5 | 7.5 | DN125 | DN80 | 60 | 830 | 481 | 441 | 365 | 402 |
| ALB-1000 | 380/50 | 7.5 | 10 | DN150 | DN100 | 65 | 930 | 496 | 469 | 365 | 433 |
| ALB-1250 | 380/50 | 9 | 12.5 | DN150 | DN100 | 70.5 | 930 | 496 | 469 | 365 | 433 |
| ALB-1500 | 380/50 | 11 | 15 | DN150 | DN100 | 80.5 | 970 | 496 | 469 | 365 | 433 |
| ALB-2000 | 380/50 | 15 | 20 | DN150 | DN100 | 84 | 1040 | 496 | 469 | 365 | 433 |
