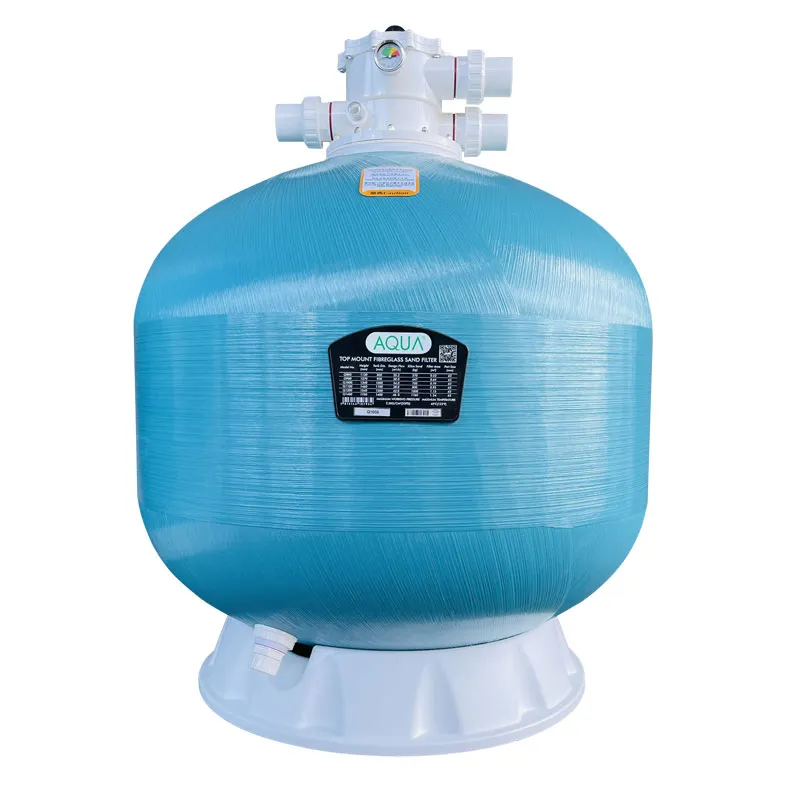

Q Top Mount Sand Filters

Name: Q Top Mount Sand Filters
Brand: Guangzhou Chuangdi M & E Technology Co., Ltd.
Availability: InStock
Rating: 4.4 (1 reviews)

Q top mount sand filters are made of 7 layers of glass fiber wrapped around the tank body, and have a twin heavy duty anti-UV polyurethane protective layer, which has excellent mechanical wear resistance. Moreover, the top mount sand filters are also equipped with a six position multi-port valve and a pressure gauge, which not only facilitates operation, but also enables real-time monitoring of operating pressure. The bottom is equipped with a sand drain plug to facilitate drainage during seasonal changes, achieving efficient and economical swimming pool water cleaning.

Inquire Now >> DOWNLOAD PDF >>



Features of Q Top Mount Sand Filters

Maximum working pressure: 250Kpa/36psi/2.5bar; 400Kpa/58psi/4.0bar(Optional).
Maximum temperature: 50°C
Tank body has twin heavy duty anti-UV polyurethane protective layer.
Ergonomically designed six position multi-port valve.
Chemical resistance.
Pressure gauge for inspection of operating pressure.
Virtually maintenance free, simply backwash filter when required.
Sand drain plug for easier sand removal-replacement.

Application of Q Top Mount Sand Filters

1. Commercial swimming pool

Suitable for swimming pools within 500㎡, processing 800m³ of water per day, supporting 24-hour continuous operation, meeting the needs of hotels/resorts.

2. Private swimming pool

Small and medium-sized tanks (diameter 60-80cm), suitable for villa swimming pools, equipped with automatic backwash, requiring only maintenance once a month.

3. Water park

Impact-resistant fiberglass tank, suitable for slide circulation system, anti-chlorine corrosion material to ensure high-load filtration all year round.

4. Hot spring spa pool

Constant-temperature sand filter (resistant to 50°C water temperature), combined with ozone disinfection, to achieve a balance of clear water quality and mineral retention.

5. Aquaculture ponds

Use an appropriate amount of filter material to remove residual bait and feces, filter 3 times an hour, and maintain dissolved oxygen in the breeding water.

Specification of Q Top Mount Sand Filters

Model	Filter Dia	Connection Size	Fliter Area	Flow	Silica Sand	Height	Weight	Matching Multiport Valve
	Filter Dia		Fliter Area	Flow	Silica Sand	Height	Weight
	(mm)		(㎡)	(m³/h)	(Kg)	(mm)	(Kg)
Q-400	400	DN40	0.13	6.3	30	750	10.3	1.5"Clamp/Screw
Q-450	450	DN40	0.16	8.0	45	810	12.2	1.5"Clamp/Screw
Q-500	530	DN40	0.22	11.5	80	870	13.7	1.5"Clamp/Screw
Q-650	630	DN40	0.33	16.5	150	870	18.4	1.5"Clamp/Screw
Q-700	700	DN40	0.38	19.2	210	960	22.6	1.5"Clamp/Screw
Q-800	800	DN50	0.50	25.2	260	1130	27.7	2"Screw
Q-900	900	DN50	0.64	30.0	400	1270	34.5	2"Screw
Q-1000	1000	DN50	0.79	34.0	600	1340	46.0	2"Screw
Q-1100	1100	DN50	0.95	38.0	800	1460	50.5	2"Screw
Q-1200	1200	DN50	1.13	42.0	900	1540	62.0	2"Screw
Q-1400	1400	DN50	1.54	48.0	1600	1750	73.0	2"Screw

Model	φD(mm)	H(mm)	A(mm)	B(mm)	M(mm)	N(mm)	φP(mm)	T(mm)
Model	φD(mm)	H(mm)	A(mm)	B(mm)	M(mm)	N(mm)	φP(mm)	T(mm)
Q-400	400	750	520	73	629	570	315	160
Q-450	450	810	565	75	674	615	390	230
Q-500	530	870	620	75	729	670	390	260
Q-650	630	870	685	95	794	735	565	350
Q-700	700	960	755	95	864	805	565	440
Q-800	800	1130	830	150	972	892	790	490
Q-900	900	1270	970	150	1112	1032	790	500
Q-1000	1000	1340	1040	150	1182	1102	790	520
Q-1100	1100	1460	1160	180	1302	1222	1010	570
Q-1200	1200	1540	1240	180	1392	1312	1010	650
Q-1400	1400	1750	1450	180	1592	1512	1010	850

Products

Need Reliable Pool Equipment Manufacturer?



Telephone

+86 020-87641635


E-mail

Aqua@aquaspapool.com


Address

Room 3002, 2191# Guangyuan East Road, Guangzhou City, Guangdong, China

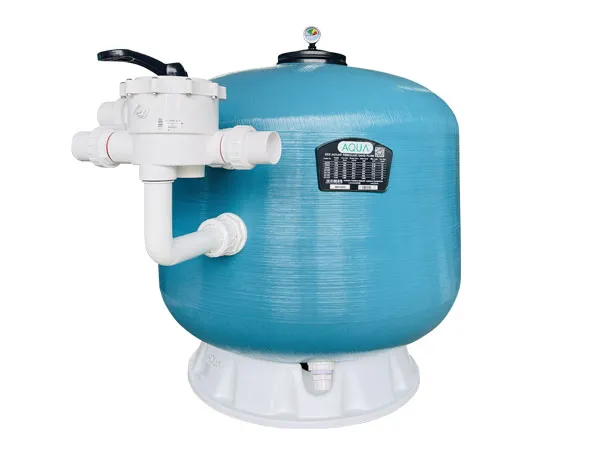

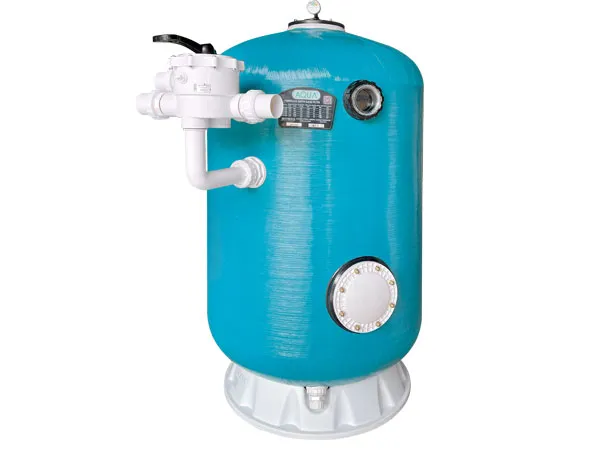

Related Swimming Pool Sand Filter
