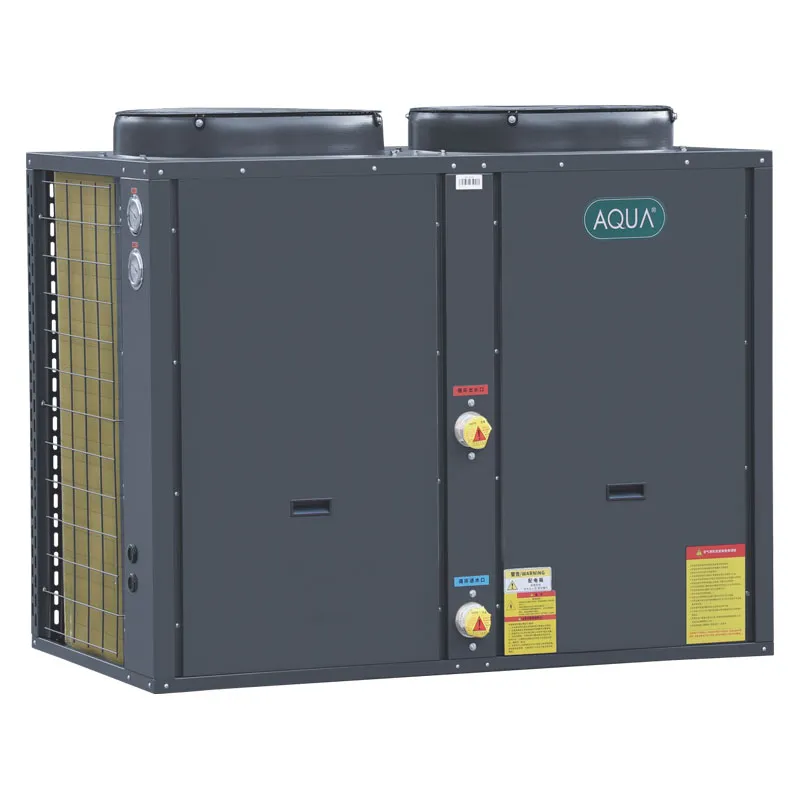

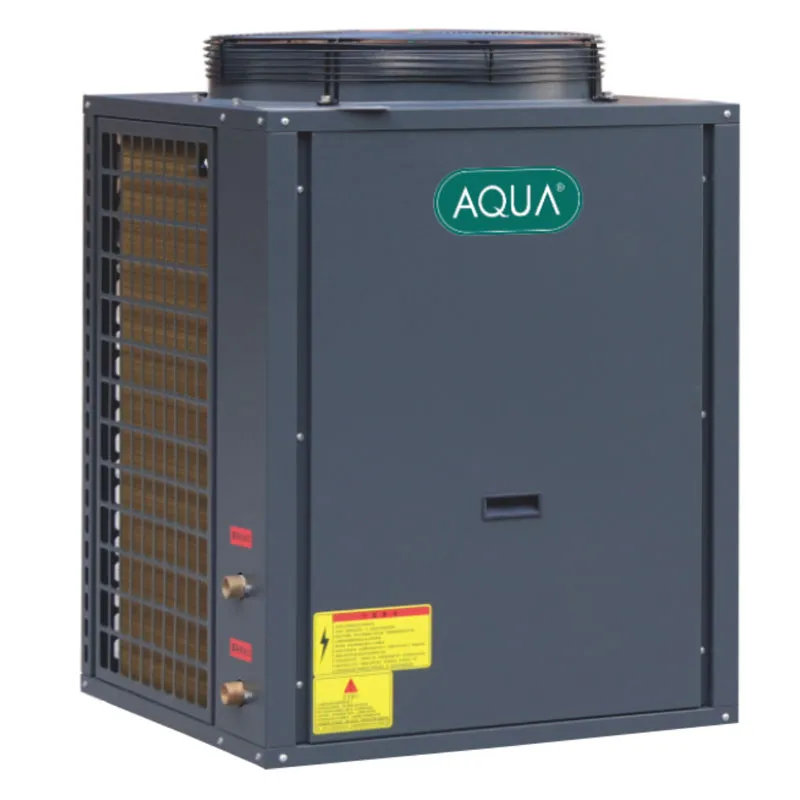

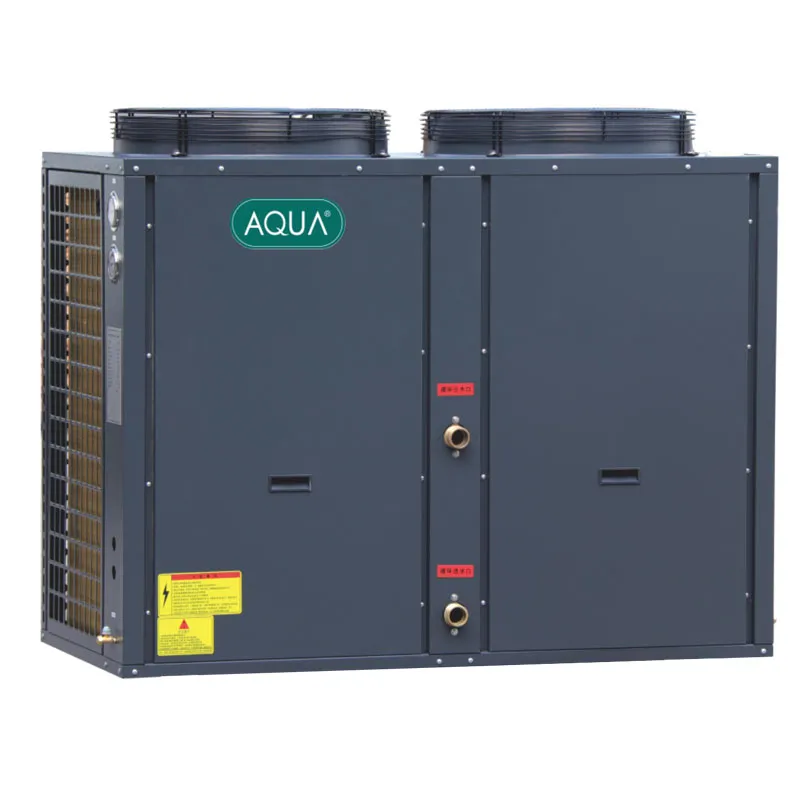

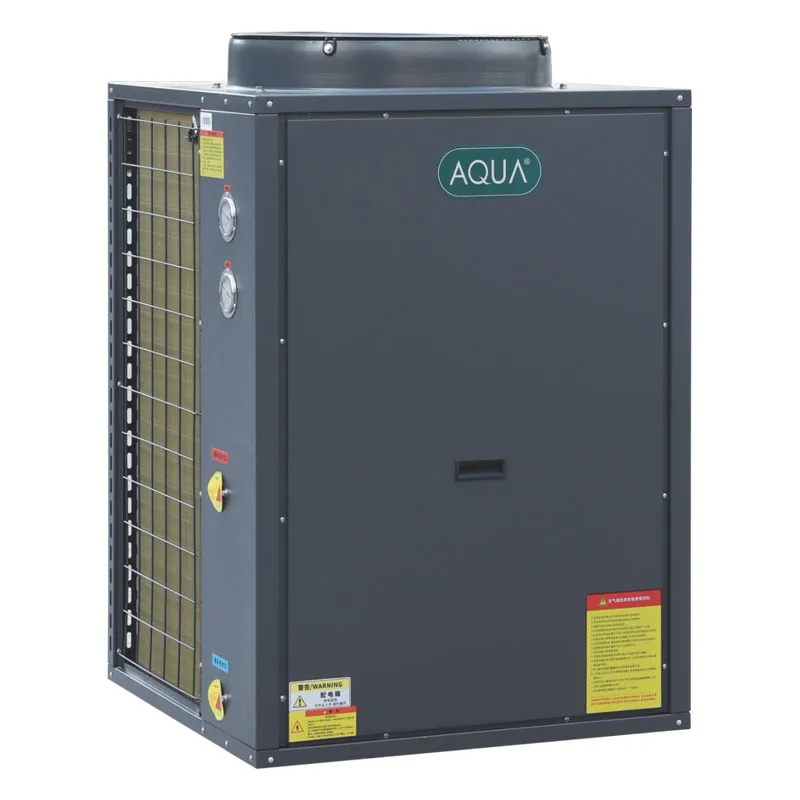

DL Floor Heating Heat Pump

Name: DL Floor Heating Heat Pump
Brand: Guangzhou Chuangdi M & E Technology Co., Ltd.
Availability: InStock
Rating: 4.4 (1 reviews)

It employs jet enthalpy increasing technology, efficiently driving the unit with a small amount of electricity to transfer energy from the air to the water via a pure titanium heat exchanger, generating hot water at a temperature above 40°C. Then, through water pump, the hot water is circulated to the underfloor heating system terminals for even heating, thereby raising the indoor temperature and achieving the purpose of heating. It features multiple built-in protection mechanisms for water flow, compressor exhaust temperature, high and low pressure, and reliable, low-noise operation. The large LCD screen offers easy operation, adjustable water temperature from 30-60°C, and supports timer on/off and power-off memory. With high COP, it is energy-efficient and environmentally friendly, operating efficiently around the clock, and suitable for comfortable and healthy heating.

Inquire Now >> DOWNLOAD PDF >>



Features of DL Floor Heating Heat Pump

Built-in water flow protection, compressor exhaust temperature protection, compressor high and low pressure protection, compressor over current protection, power supply phase error protection(available in three-phase models), and winter antifreeze protection.
Adopting low-noise compressor and fan design, the unit operates quietly.
Large-screen LCD display with back light, easy to operate, water temperature 30°C-60°C can be set freely, cycle timing on/off can be set, and power failure memory function.
EVI air-supplementing and enthalpy-increasing hot water heat pump works reliably all day long.

Application of DL Floor Heating Heat Pump

1. Residential Heating

Uses environmentally friendly refrigerants, offering high energy efficiency and a stable 60℃ hot water supply even at -25℃, meeting household heating needs.

2. Hotel/Motel Room Heating

Quiet operation ensures minimal disturbance to guests, while the hot water supply enhances the living experience.

3. Commercial Spaces (Office/Mall, etc.)

Zoned temperature control adapts to high-traffic environments, offering energy savings and flexible installation.

4. Central Heating in Low-Temperature Areas

Features jet enthalpy enhancement technology for stable heating in frigid environments.

Specification of DL Floor Heating Heat Pump

Model			DL-30(E)	DL-50(E)	DL-70(E)	DL-100(E)	DL-120(E)	DL-150(E)


Heating Condition 1 (A7C/W45°C)	Heating Capacity	kW	7.5	14.5	20.0	28.5	34.3	43.0
	COP	W/W	3.62	3.62	3.62	3.62	3.62	3.62
	Power	kW	2.1	4.0	5.5	7.9	9.5	11.9
	Current	A	9.4	6.8	9.4	13.4	162	20.3
Heating Condition 2 (A-12C/W41℃)	Heating Capacity	kW	5.2	10.0	13.7	198	23.7	29.8
	COP	W/W	2.5	2.5	2.5	2.5	25	2.5
	Power	kW	2.1	4.0	5.5	7.9	9.5	11.9
	Current	A	9.5	6.8	9.4	13.5	16.2	20.3
Heating Condition 3 (A-20C/N41℃)	Heating Copaciiy	kW	4.3	8.3	11.4	16.3	19.6	24.5
	COP	W/W	2.03	2.05	2.05	2.05	2.05	2.05
	Power	kW	2.1	4.0	5.6	8.0	9.6	12.0
	Current	A	9.6	6.9	9.5	13.6	16.3	20.4
Power Supply		/	220V/-/50Hz	380V/3N-/50Hz
Max. Current Input		A	17	13	17	23	26	32
Max. Power Input		kW	3.7	7.3	9.5	12.9	14.5	17.9
Compressor Type		/	Rotary	Fullyendlosed scrol
Water Pressure Drop		kPa	91	105	190	104	180	180
Noise		dB(A)	58	60	63	65	6	68
Comnection Size		mm	DN25 Female Thread	DN32 Female Thread	DN32 Female Thread	DN40 Female Threod	DN40 Female Threod	DN50 Femake Thread
Water Flow		m³/h	2.5	4	6	8	10	12
Refrigerart		/	R410A
Operating Temperature Range		℃	-30-45
Dimensions(LWH)		mm	768709868	8057501068	8708101268	14507801073	14507801223	14809001660
Weight		kg	110	170	190	225	285	420

Heating Condition 1: Outdoor Ambient Temp. (DB/WB): 7℃/6℃, Water Temp. (Out): 45℃.
Heating Condition 2: Outdoor Ambient Temp. (DB/WB): -12℃/-14℃, Water Temp. (Out): 41℃.
Heating Condition 3: Outdoor Ambient Temp. (DB/WB): -20℃, Water Temp (Out): 41℃.
The data above is for reference only. For model pecifications, please refer to the nameplate on the unit.
