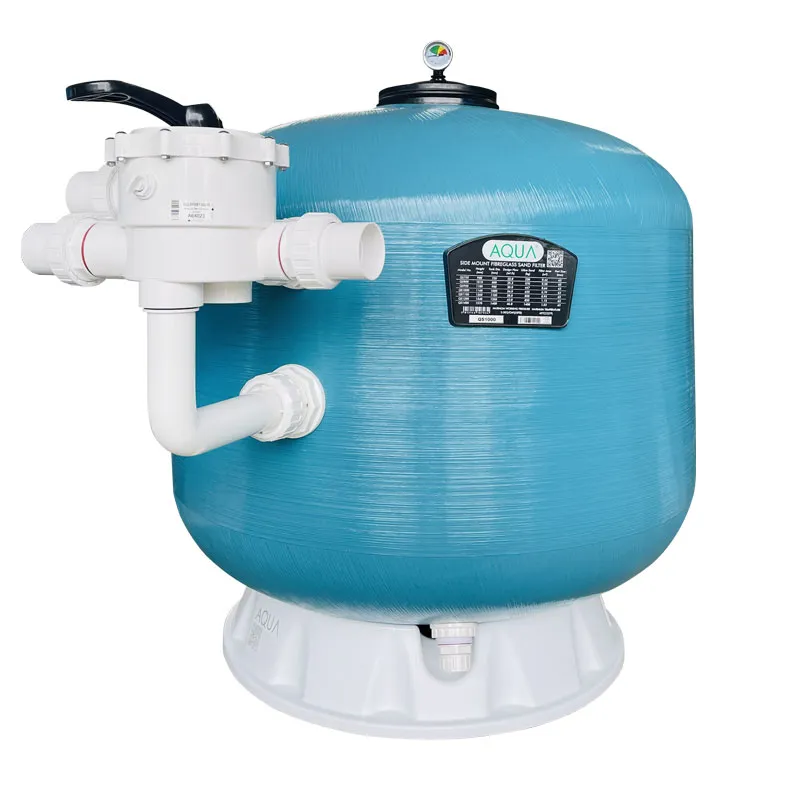

QS Side Mount Sand Filters

Features of QS Side Mount Sand Filters

• Maximum working pressure: 250Kpa/36psi/2.5bar; 400Kpa/58psi/4.0bar(Optional).

• Maximum temperature: 50°C

• Factory testing pressure: 400kpa/58psi(4.0bar), 600kpa/86psi(6.0bar).

• Anti-UV protective layer of fiber glass wound reinforced filter tank.

• Ergonomically designed six position multi-port valve.

• Stainless steel oil filled psi/kpa dual scale pressure gauge.

• Internal piping for easy servicing.

• Automatic air bleed with manual safety pressure release.

• The industries largest ring-lock sealing clear top viewing port.

• Sand drain plug for easier sand removal replacement.

Application of QS Side Mount Sand Filters

1. Private swimming pool &commercial swimming pool

Suitable for private swimming pools and commercial swimming pools, effectively removing suspended particles in the water and maintaining clear water quality.

2. Water feature pool

Installed in fountains, landscape pools, etc., it strongly filters impurities and prevents pumps and nozzles from getting clogged.

3. Hot spring and SPA pool

Resistant to high temperatures (50°C) and UV rays, suitable for fine water quality filtration in high-temperature environments.

4. Aquaculture

Efficiently filters the aquaculture water body, providing a favorable living environment for fish and shrimp, etc.

5. Water park

Suitable for large flow scenarios, it stably maintains the cleanliness of the amusement water body.

6. Industrial water pre-treatment

Can be used for industrial water pre-treatment, intercepting large particles and reducing turbidity.

Specification of QS Side Mount Sand Filters
