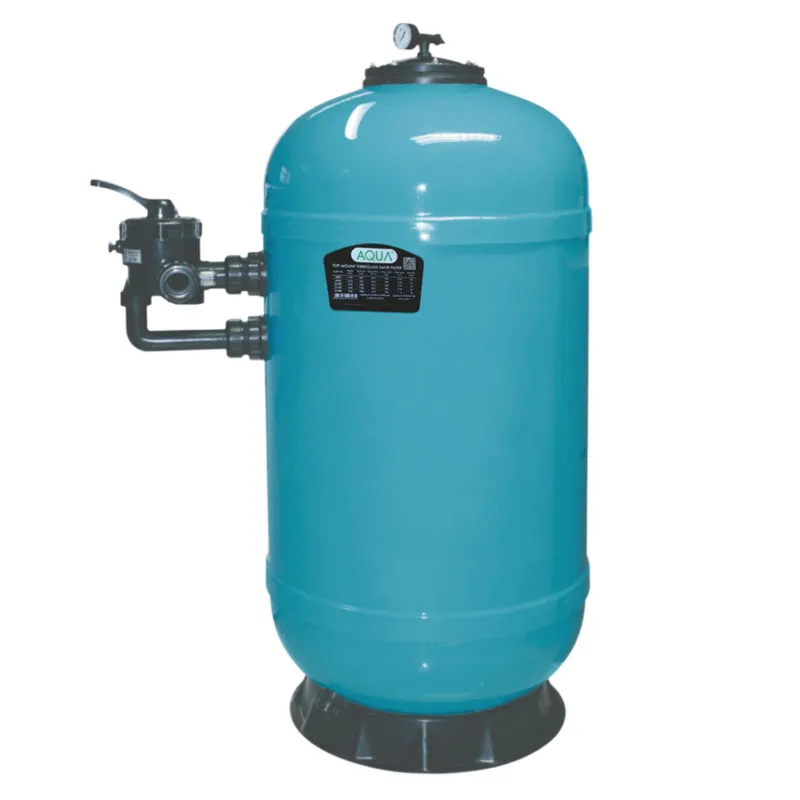

QDS Smooth Surface Depth Sand Filters

Name: QDS Smooth Surface Depth Sand Filters
Brand: Guangzhou Chuangdi M & E Technology Co., Ltd.
Availability: InStock
Rating: 4.4 (1 reviews)

QDS depth sand filter is manufactured using reinforced polyester with fiberglass, which is completely anti-corrosive,with high mechanical, chemical and thermal resistance. It's surface is smooth, and it has unique sand bed structure design, which can filter impurities in a large area and achieve extremely high filtration efficiency. It is suitable for water purification of outdoor swimming pools and water parks.

Inquire Now >> DOWNLOAD PDF >>



Features of QDS Smooth Surface Depth Sand Filters

Maximum working pressure: 250Kpa/36psi/2.5bar.
Maximum temperature: 50℃.
Smooth filter body surface, easy to clean.
High sand bed.
UV resistance.
Effect filtration.
Outdoor installation allowed.

Application of QDS Smooth Surface Depth Sand Filters

1. Large-scale water park

It is suitable for 3000 m³ wave making pool, with sand bed depth of 1.5 meters and filtration of 500 m³/h water.

2. Public Swimming Pool

Temperature resistance of 50℃, chlorine corrosion resistance, 250Kpa pressure resistance and 10h continuous operation.

3. Hot Spring Resort

The deep filtration precision reaches 15 μm, and the water turbidity is ≤ 0.5 NTU with the ozone system.

4. Hotel outdoor pool

UV-protected housing, stable from -10℃ to 50 ℃, virtually maintenance-free filter body block throughout the year.

5. Community Club Pool

Reduces backwash time to 6 minutes, saves 35 % of water and reduces operating costs.

Specification of QDS Smooth Surface Depth Sand Filters

Model	Filter Dia	Height	Connection Size	Flow	Filter Area	Silica Sand
	Filter Dia	Height		Flow	Filter Area	Silica Sand
	(mm)	(mm)		(m³/h)	(m²)	0.5-0.8mm(kg)	1-2mm(kg)
QDS13500	540	1350	DN40	8.0	0.20	220	-
QDS13650	650	1350	DN40	12.8	0.32	300	-
QDS13700	710	1350	DN40	15.2	0.38	420	-
QDS15800	810	1500	DN50	20.0	0.50	460	170
QDS15900	910	1500	DN50	25.6	0.64	600	230

Model	φD(mm)	H(mm)	A(mm)	B(mm)	C(mm)	φP(mm)	T(mm)
Model	φD(mm)	H(mm)	A(mm)	B(mm)	C(mm)	φP(mm)	T(mm)
QDS13500	540	1350	750	75	125	390	700
QDS13650	650	1350	750	95	125	565	700
QDS13700	710	1350	750	95	125	565	700
QDS15800	810	1500	900	150	220	790	700
QDS15900	910	1500	900	150	220	790	700
