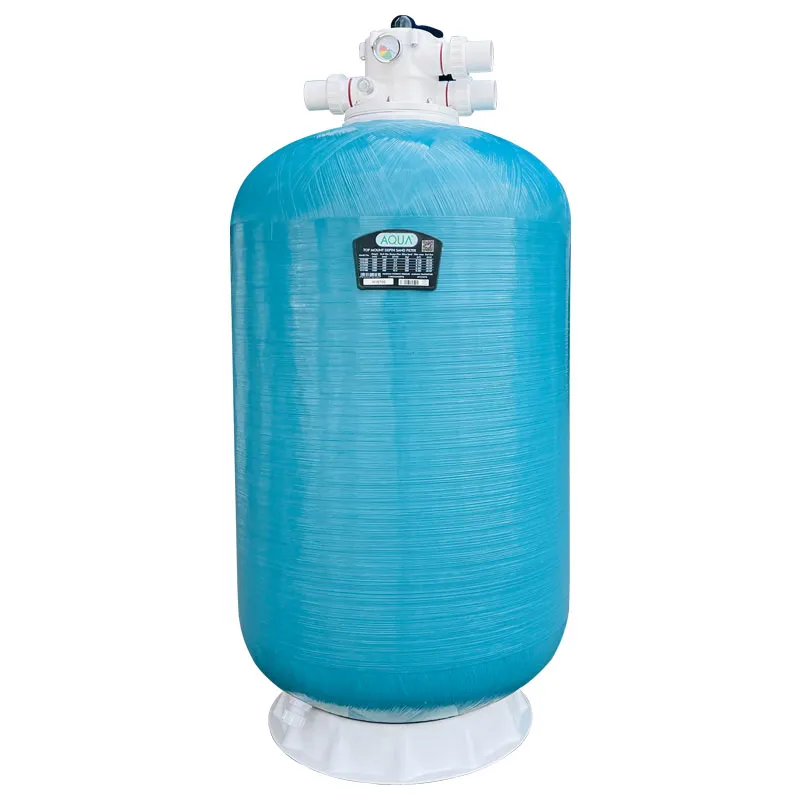

H Depth Sand Filters

Name: H Depth Sand Filters
Brand: Guangzhou Chuangdi M & E Technology Co., Ltd.
Availability: InStock
Rating: 4.4 (1 reviews)

H depth sand filters adopt glass fiber winding tank body with anti-ultraviolet layer, which is firm and pressure-resistant, equipped with six-position multifunctional valve for easy operation. Compared to standard filtering sand filters, the depth sand filters significantly improve filtration efficiency by providing enhanced deep filtration and increased fouling capacity, while improve efficiently trapping impurities. Therefore, it can bring clean filtered water and high clarity water quality to private swimming pools and commercial pools such as landscape pools.

Inquire Now >> DOWNLOAD PDF >>



Features of H Depth Sand Filters

Maximum working pressure: 250Kpa/36psi/2.5bar, 400Kpa/58psi/4.0bar(Optional).
Maximum temperature: 50℃.
Anti-UV protective layer of fiber glass wound reinforced filter tank.
Ergonomically designed six position multi-port valve.
Excellent filtering ability.
Chemical resistance.

Application of H Depth Sand Filters

1. Large public swimming pools

Adapt to 500m² standard swimming pool, filter 120m of water per hour, and the water quality compliance rate is 99 %.

2. Hot Spring Resort Pool

Temperature resistance of 45℃, resistance to chloride ion corrosion, and extended filtration period of hot spring water by 50 %.

3. Water park

High flow rate design, supporting instantaneous flow of 30m³/h to ensure water circulation of the slideway.

4. Hotel Landscape Pool

Visualization of transparent top cover, filtration rate of algae impurities is 95 %, and water body is crystal clear.

5. Community Club Pool

250Kpa pressure resistance, 30 % water saving for backwashing and reduced operating cost.

Specification of H Depth Sand Filters

Model	Connection Size	Filter Area	Flow	Silica Sand	φD	H	A	B	M	N	φP	T
		Filter Area	Flow	Silica Sand	φD	H	A	B	M	N	φP	T
		(m²)	(m³/h)	(kg)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)
H15400	DN40	0.13	3.9	150	400	1500	1262	75	1371	1312	390	850
H15450	DN40	0.16	4.8	195	450	1500	1262	75	1371	1312	390	850
H15500	DN40	0.20	6.0	240	530	1500	1262	75	1371	1312	390	850
H15600	DN40	0.32	9.6	325	630	1500	1262	95	1371	1312	565	830
H15700	DN40	0.37	11.0	400	700	1500	1262	95	1371	1312	565	830
