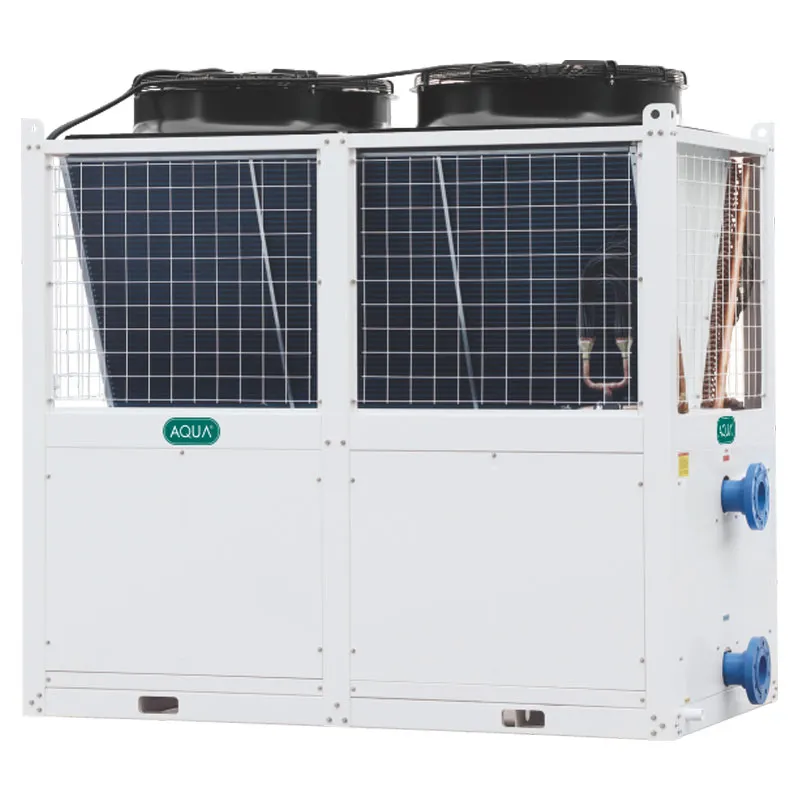

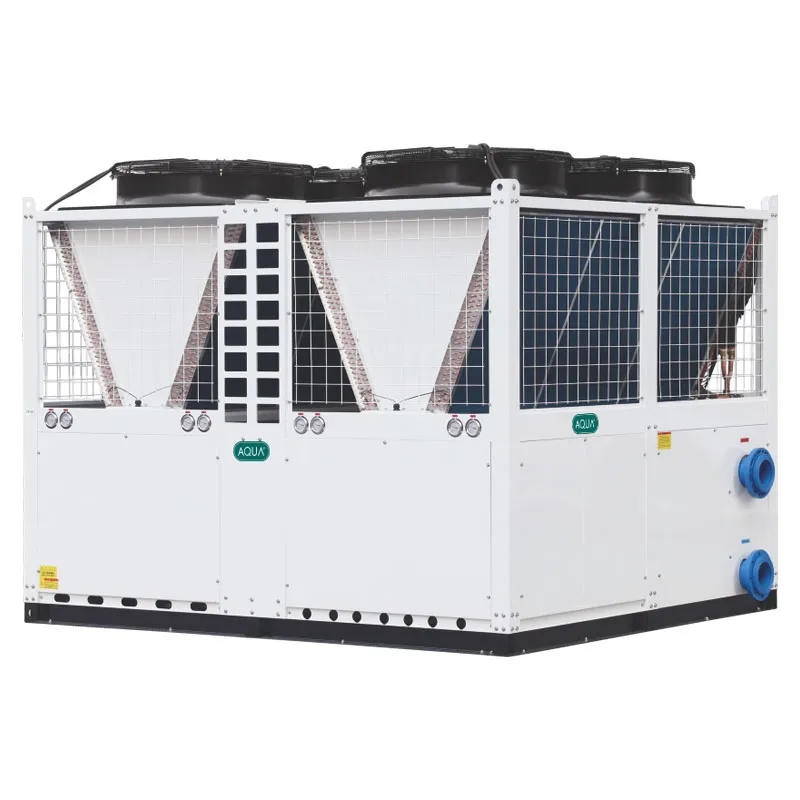

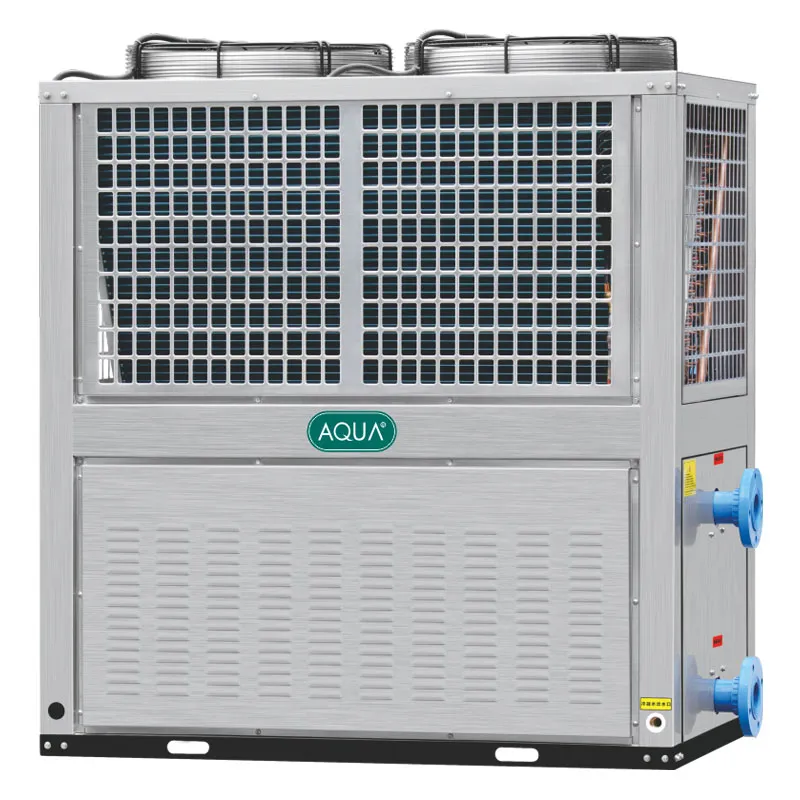

Features of B Heat Pump
High efficiency pure titanium heat exchanger, Corrosion resistance.
Automatic heating, automatic defrosting. Automatic heating mode, energy saving, produce hot water all the time.
Built-in water flow protection, compressor discharge temperature production, system refrigerant high-low protection, compressor over current protection, power supply phase sequence protection. (3 phase model), antifreeze protection.
Meet the heating demand of various places.
Application of B Heat Pump
1. Private Villa Pools
Reliable and durable, it achieves year-round constant temperature to meet family leisure needs.
2. Hotel/Resort Pools
Delivers stable constant temperature for 24/7 operation, enhancing guest experience and brand image.
3. SPA Centers
Provides steady heating to complement spa programs and elevate wellness experiences.
Specification of B Heat Pump
Normal Temperature Type
| Model | B-12 | B-15 | B-20 | B-22 | B-30 | B-35 | B-55II | B-60II | B-70II |
|
|
Rated
Heating
(A24℃/
W26℃) | Heating Capacity | kW | 56.0 | 75.0 | 90.0 | 100.0 | 125.0 | 150.0 | 225.0 | 250.0 | 300.0 |
| COP | W/W | 5.6 | 5.6 | 5.6 | 5.6 | 5.6 | 5.6 | 5.6 | 5.6 | 5.6 |
| Power | kW | 10.0 | 13.4 | 16.1 | 17.9 | 22.3 | 26.8 | 40.2 | 44.6 | 53.6 |
| Current | A | 17.1 | 22.9 | 27.4 | 30.5 | 38.1 | 45.7 | 68.6 | 76.2 | 91.5 |
Nominal
Heating
(A20℃/
W26℃) | Heating Capacity | kW | 47.8 | 64.2 | 77.1 | 86.0 | 106.8 | 128.4 | 192.5 | 214.3 | 257.4 |
| COP | W/W | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 |
| Power | kW | 10.0 | 13.4 | 16.1 | 17.9 | 22.3 | 26.8 | 40.1 | 44.6 | 53.6 |
| Current | A | 17.0 | 22.8 | 27.4 | 30.6 | 38.0 | 45.7 | 68.5 | 76.2 | 91.5 |
| Power Supply | / | 380V/3N~/50Hz |
| Max. Current Input | A | 23 | 28 | 32 | 40 | 52 | 63 | 82 | 98 | 110 |
| Max. Power Input | kW | 12.9 | 15.7 | 17.9 | 22.4 | 29.1 | 35.2 | 45.9 | 54.8 | 61.5 |
| Compressor Type | / | Fully enclosed scroll |
| Water Pressure Drop | kPa | 43 | 45 | 45 | 52 | 58 | 58 | 65 | 68 | 68 |
| Noise | dB(A) | 65 | 68 | 68 | 70 | 70 | 72 | 73 | 73 | 73 |
| Connection Size(PVC) | mm | DE75 Fange | DE75 Fange | DE75 Fange | DE75 Fange | DE90 Fange | DE90 Fange | DE110 Fange | DE110 Fange | DE110 Flange |
| Water Flow | m³/h | 16 | 20 | 25 | 30 | 35 | 40 | 58 | 65 | 75 |
| Refrigerant | / | R410A |
| Operating Temperature Range | ℃ | -12-45 |
| Dimensions(L*W*H) | mm | 1580 *900*1660 | 1580*900*1660 | 1580*900*1660 | 1926*1056*2190 | 2126*1106*2200 | 2126*1106*2200 | 2450*1302*2260 | 2450*1302*2260 | 2650*1302*2260 |
| Weight | kg | 310 | 340 | 380 | 505 | 590 | 680 | 785 | 962 | 1085 |
Rated Heating Condition: Outdoor Ambient Temp. (DB/WB): 24°C/19°C, Water Temp. (In): 26°C.
Nominal Heating Condition: Outdoor Ambient Temp. (DB/WB): 20°C/15°C, Water Temp. (In): 26°C.
The data above is for reference only. For model specifications, please refer to the nameplate on the unit.
Low Temperature Type
| Model | B-12(E) | B-15(E) | B-20(E) | B-22(E) | B-30(E) | B-35(E) | B-551I(E) | B-6OII(E) |
|
|
Heating
Condition 1
(A20℃/N26℃) | Heating Capacity | kW | 47.8 | 64.2 | 77.1 | 86.0 | 106.8 | 128.4 | 192.5 | 214.3 |
| COP | W/W | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 |
| Power | kw | 10.0 | 13.4 | 16.1 | 17.9 | 22.3 | 26.8 | 40.1 | 44.6 |
| Current | A | 17.0 | 22.8 | 27.4 | 30.6 | 38.0 | 45.7 | 68.5 | 76.2 |
Heating
Condition 2 (A7℃/W26℃) | Heating Capacity | kw | 43.3 | 58.2 | 69.9 | 78.0 | 96.5 | 116.5 | 174.5 | 194.2 |
| COP | W/W | 4.35 | 4.35 | 4.35 | 4.35 | 4.35 | 4.35 | 4.35 | 4.35 |
| Power | kW | 10.0 | 13.4 | 16.1 | 17.9 | 22.2 | 26.8 | 40.1 | 44.6 |
| Current | A | 17.0 | 22.8 | 27.4 | 30.6 | 37.9 | 45.7 | 68.5 | 76.2 |
Heating Condition 3
(A2℃/W26℃) | Heating Capacity | kw | 41.2 | 55.2 | 66.3 | 74.0 | 91.8 | 110.6 | 165.8 | 184.3 |
| COP | W/W | 4.13 | 4.13 | 4.13 | 4.13 | 4.13 | 4.13 | 4.13 | 4.13 |
| Power | kw | 10.0 | 13.4 | 16.1 | 17.9 | 22.2 | 26.8 | 40.1 | 44.6 |
| Current | A | 17.0 | 228 | 27.4 | 30.6 | 37.9 | 45.7 | 68.5 | 76.2 |
| Heating Condition 4 (A-12℃/W26℃) | Heating Capacity | kw | 30.9 | 41.4 | 49.8 | 55.4 | 68.9 | 83.0 | 124.3 | 138.3 |
| COP | W/W | 3.1 | 3.1 | 3.1 | 3.1 | 3.1 | 3.1 | 3.1 | 3.1 |
| Power | kw | 10.0 | 13.4 | 16.1 | 17.9 | 22.2 | 26.8 | 40.1 | 44.6 |
| Current | A | 17.0 | 228 | 27.4 | 30.5 | 37.9 | 45.7 | 68.5 | 76.2 |
| Power Supply | / | 380V/3N-/50Hz |
| Max. Current Input | A | 23 | 28 | 32 | 40 | 52 | 63 | 82 | 98 |
| Max. Power Input | kw | 12.9 | 15.7 | 17.9 | 22.4 | 29.1 | 35.2 | 45.9 | 54.8 |
| Compressor Type | / | Fully enclosedscroll |
| Water Pressure Drop | kPa | 43 | 45 | 45 | 52 | 58 | 5B | 65 | 68 |
| Noise | dB(A) | 65 | 68 | 68 | 70 | 70 | 72 | 73 | 73 |
| Connection Size(PVC) | mm | DE75 Flange | DE75 Flange | DE75 Flange | DE75 Flange | DE90 Flange | DE90 Flange | DE110 Flange | DE110 Flange |
| Water Flow | m³/h | 16 | 20 | 25 | 30 | 35 | 40 | 58 | 65 |
| Refrigerant | / | R410A |
| Operating Temperature Range | ℃ | -30~45 |
| Dimensions(L*W*H) | mm | 1580*900*1660 | 1580*900*1660 | 1580*900*1660 | 1926*1056*2190 | 2126*1106*2200 | 2126*1106*2200 | 2450*1302*2260 | 2450*1302*2260 |
| Weight | kg | 315 | 345 | 385 | 515 | 605 | 705 | 812 | 986 |
Heating Condition 1: Outdoor Ambient Temp. (DB/WB): 20°C/15°C, Water Temp. (In): 26°C.
Heating Condition 2: Outdoor Ambient Temp. (DB/WB): 7°C/6°C, Water Temp. (In): 26°C.
Heating Condition 3: Outdoor Ambient Temp. (DB/WB): 2°C/1°C, Water Temp. (In): 26°C.
Heating Condition 4: Outdoor Ambient Temp. (DB/WB): -12°C/-14°C, Water Temp. (In): 26°C.
The data above is for reference only. For model specifications, please refer to the nameplate on the unit.
Normal Temperature Type
| Model | B-45IV | B-55IV | B-60IV | B-70IV | B-110IV | B-120IV |
|
|
Rated
Heating
(A24℃/
W26℃) | Heating Capacity | kW | 180.0 | 225.0 | 250.0 | 300.0 | 450.0 | 500.0 |
| COP | W/W | 5.6 | 5.6 | 5.6 | 5.6 | 5.6 | 5.6 |
| Power | kw | 32.1 | 40.2 | 44.6 | 53.6 | 80.4 | 89.3 |
| Current | A | 54.9 | 68.6 | 76.2 | 91.5 | 137.2 | 152.4 |
Nominal Heating
(A20℃/
W26℃) | Heating Capacity | kW | 154.1 | 192.5 | 214.3 | 257.4 | 385.0 | 415.2 |
| COP | W/W | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 |
| Power | kw | 32.1 | 40.1 | 44.6 | 53.6 | 80.2 | 86.5 |
| Current | A | 54.8 | 68.5 | 76.2 | 91.5 | 136.9 | 147.7 |
| Power Supply | / | 380V/3N~/50Hz |
| Max. Current Input | A | 72 | 82 | 98 | 110 | 165 | 195 |
| Max. Power Input | kw | 40.3 | 45.9 | 54.8 | 61.5 | 92.3 | 109.1 |
| Compressor Type | / | Fully enclosed scroll |
| Water Pressure Drop | kPa | 62 | 65 | 68 | 68 | 72 | 72 |
| Noise | dB(A) | 72 | 73 | 73 | 75 | 78 | 78 |
| Connection Size(PVC) | mm | DE110 Flange | DE110 Flange | DE110 Flange | DE110 Flange | DE140 Flange | DE140 Flange |
| Water Flow | m³/h | 50 | 58 | 65 | 75 | 96 | 120 |
| Refrigerant | / | R410A |
| Operating Temperafure Range | ℃ | -12~45 |
| Dimensions (L*W*H) | mm | 2006*2212*2185 | 2006*2212*2228 | 2006*2212*2228 | 2006*2212*2228 | 2900*2350*2260 | 2900*2350*2260 |
| Weight | kg | 830 | 985 | 1170 | 1380 | 1570 | 1920 |
Rated Heating Condition: Outdoor Ambient Temp. (DB/WB): 24°C/19°C, Water Temp. (In): 26°C.
Nominal Heating Condition: Outdoor Ambient Temp. (DB/WB): 20°C/15°C, Water Temp. (In): 26°C.
The data above is for reference only. For model specifications, please refer to the nameplate on the unit.
Low Temperature Type
| Model | B-45IV(E) | B-55IV(E) | B-60IV(E) | B-70IV(E) | B-110IV(E) | B-120IV(E) |
|
|
Heating
Condition 1
(A20℃/N26℃) | Heating Capacity | kW | 154.1 | 192.5 | 214.3 | 257.4 | 385 | 415.2 |
| COP | w/W | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 |
| Power | kW | 32.1 | 40.1 | 44.6 | 53.6 | 80.2 | 86.5 |
| Current | A | 54.8 | 68.5 | 76.2 | 91.5 | 136.9 | 147.7 |
Heating
Condition 2 (A7℃/W26℃) | Heating Capacity | Kw | 139.6 | 174.5 | 194.2 | 233.1 | 345.0 | 388.4 |
| COP | W/W | 4.35 | 4.35 | 4.35 | 4.35 | 4.35 | 4.35 |
| Power | kw | 32.1 | 40.1 | 44.6 | 53.6 | 79.3 | 89.3 |
| Current | A | 54.8 | 68.5 | 76.2 | 91.5 | 135.4 | 152.4 |
Heating Condition 3
(A2℃/W26℃) | Heating Capacity | KW | 132.5 | 165.8 | 184.3 | 221.3 | 331.6 | 368.6 |
| COP | W/W | 4.13 | 4.13 | 4.13 | 4.13 | 4.13 | 4.13 |
| Power | kw | 32.1 | 40.1 | 44.6 | 53.6 | 80.3 | 89.2 |
| Current | A | 54.8 | 68.5 | 76.2 | 91.5 | 137.1 | 152.4 |
| Heating Condition 4 (A-12℃/W26℃) | Heating Capacity | kW | 99.6 | 124.3 | 138.3 | 166.1 | 248.3 | 276.6 |
| COP | W/W | 3.1 | 3.1 | 3.1 | 3.1 | 3.1 | 3.1 |
| Power | kw | 32.1 | 40.1 | 44.6 | 53.6 | 80.1 | 89.2 |
| Current | A | 54.8 | 68.5 | 76.2 | 91.5 | 136.7 | 152.3 |
| Power Supply | / | 380V/3N-/50Hz |
| Max. Current Input | A | 72 | 82 | 98 | 110 | 165 | 195 |
| Max. Power Input | kw | 40.3 | 45.9 | 54.8 | 61.5 | 92.3 | 109.1 |
| Compressor Type | / | Fully enclosed scroll |
| Water Pressure Drop | kPa | 62 | 65 | 68 | 68 | 72 | 72 |
| Noise | dB(A) | 72 | 73 | 73 | 75 | 78 | 78 |
| Connection Size(PVC) | mm | DE110 Flange | DE110 Flange | DE110 Flange | DE110 Flange | DE140 Flange | DE140 Flange |
| Water Flow | m³/h | 50 | 58 | 65 | 75 | 96 | 120 |
| Refrigerant | / | R410A |
| Operating Temperafure Range | ℃
| -30~45 |
| Dimensions(L*W*H) | mm | 2006*2212*2185 | 2006*2212*2228 | 2006*2212*2228 | 2006*2212*2228 | 2900*2350*2260 | 2900*2350*2260 |
| Weight | kg | 860 | 1005 | 1205 | 1405 | 1720 | 2150 |
Heating Condition 1: Outdoor Ambient Temp. (DB/WB): 20°C/15°C, Water Temp. (In): 26°C.
Heating Condition 2: Outdoor Ambient Temp. (DB/WB): 7°C/6°C, Water Temp. (In): 26°C.
Heating Condition 3: Outdoor Ambient Temp. (DB/WB): 2°C/1°C, Water Temp. (In): 26°C.
Heating Condition 4: Outdoor Ambient Temp. (DB/WB): -12°C/-14°C, Water Temp. (In): 26°C.
The data above is for reference only. For model specifications, please refer to the nameplate on the unit.
