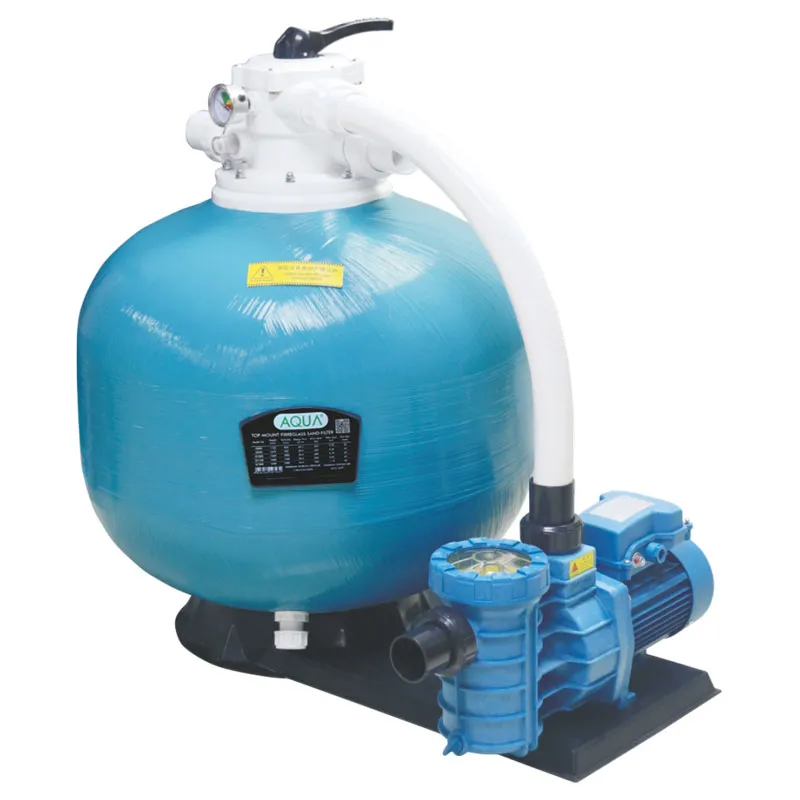

QSF Filtration Combo

QSF Filtration Combo adopts glass fiber reinforced filter sand filter, integrates centrifugal pump and a six position multi-port valve, which is easy to install and maintain. Efficiently filter the water of swimming pool to ensure clean and stable water quality and bring you high-quality swimming experience.

Inquire Now >> DOWNLOAD PDF >>

Features of QSF Filtration Combo

  • Maximum working pressure: 250Kpa/36psi/2.5bar

  • Maximum temperature: 43°C

  • Filtration combo are easy to use and install. Fiberglass reinforced tank with unequaled strength and durability.

  • These systems equipped with top-mount filter and centrifugal pump.


Application of QSF Filtration Combo

1. Small and medium-sized swimming pool

Integrated filtration and circulation function, suitable for swimming pool within 80m3, installation completed within 1 hour.

2. Outdoor Recreation Pool

Weather-resistant housing, anti-UV, stable working condition from -5℃ to 45℃, worry-free outdoor use.

3. Child swimming pool

Silent operation ≤ 58 decibels, transparent filter cover visualization to ensure children's swimming safety.

4. Community Club Pool

The multi-directional valve is switched with one button, and the backwashing is completed in 10 minutes, saving maintenance manpower.

5. Villa Private Pool

250Kpa withstand voltage design, annual failure rate < 0.5 %, low long-term use cost.


Specification of QSF Filtration Combo

ModelSand Filter
 Model		Pump
Model		Connection
Size		Filter AreaFlowSilica SandFilter DiaHeight
(m²)(m³/h)(kg)(mm)(mm)
QSF400-6WQ400ABSO30DN400.136.330400770
QSF450-6WQ450ABS050DN400.168.045450815
QSF500-6WQ500ABS100DN400.2011.580530870
QSF650-6WQ650ABS150DN400.3216.5130630935
QSF700-6WQ700ABS150DN400.3819.21907001005


ModelφD(mm)H(mm)A(mm)φP(mm)T(mm)
QSF400-6W400770500575160
QSF450-6W450815560710230
QSF500-6W530870620710260
QSF650-6W630935640770350
QSF700-6W7001005710870440
