  • Swimming Pool Disinfection MUV Medium Pressure UV Sterilizer
  • Swimming Pool Disinfection MUV Medium Pressure UV Sterilizer

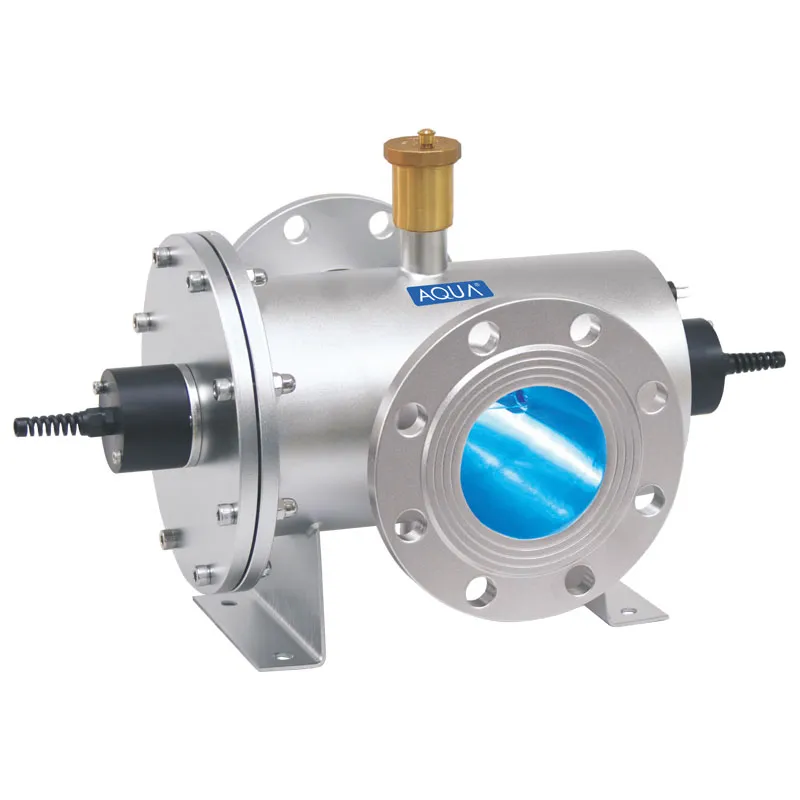

MUV Medium Pressure UV Sterilizer

AQUA Medium-Pressure UV Water Purifier utilizes high-intensity broad-spectrum ultraviolet light within the 200–400nm range, targeting key wavelengths at 245nm, 297nm, and 340nm to effectively break down chloramines. This purely physical purification system eliminates up to 99.9% of harmful microorganisms, including bacteria and viruses, resulting in clean, mild, and irritation-free pool water. By lowering dependency on chemical disinfectants, it not only improves swimmer comfort but also helps prevent stress corrosion on metal structures commonly found in indoor pools. Energy-saving, long-lasting, and simple to retrofit into existing filtration systems, it offers reliable, low-cost water care for all types of aquatic facilities.

Features of MUV Medium Pressure UV Sterilizer

  • Effective Broad-Spectrum UV Action

Operating across 200–400nm with key output at 245nm, 297nm, and 340nm, the system achieves high-efficiency germ elimination and significant chloramine reduction for healthier pool water.

  • Stable Performance Under High Flow Rates

Engineered to maintain consistent disinfection performance even with large water turnover rates, making it highly suitable for busy commercial and public pool environments.

  • Chemical-Free Water Treatment Approach

Using only physical UV disinfection without additional chemicals, it reduces chlorine usage, minimizes skin and eye discomfort, and creates a more natural swimming environment.

  • Long Service Life & Easy Upkeep

Built with high-quality imported UV lamps and corrosion-resistant materials for extended durability. The quartz tube is equipped with a manual cleaning device to maintain output efficiency and reduce frequent maintenance.


Application of MUV Medium Pressure UV Sterilizer

1. Public & Commercial Swimming Pools

Designed for high-capacity use, it efficiently controls chloramine levels and removes harmful pathogens, protecting visitors' health while preserving pool interior structures.

2. Indoor Swimming & Professional Training Pools

By reducing chemical vapor and chloramine build-up, it improves indoor air quality and reduces corrosion risks to steel components, ideal for enclosed training and competition facilities.

3. Hotel & Resort Pools & Spa Zones

The chemical-minimized design produces soft, non-irritating water that enhances guest comfort. Its low-maintenance structure also lowers daily management workload for hospitality operators.

4. Community & Recreational Aquatic Centers

Featuring strong adaptability to high-flow systems and long-lasting components, it delivers stable, continuous water disinfection for high-traffic public leisure venues.


Specification of MUV Medium Pressure UV Sterilizer

ModelVoltageConnection SizeNumber of TubesPowerMaximum FlowControl Box Size
(V/Hz)(kW)(m³/h)(mm)
MUV2K1NW80220/50DN801150600*600*210
MUV4K3NW100380/50DN1001290600*600*210
MUV6K3NW150380/50DN15013200600*760*350
MUV8K3NW200380/50DN20024270600*760*350
MUV12K3NW250380/50DN25026480600*760*350
MUV16K3NW300380/50DN250/DN30048580600*1000*350
MUV24K3NW300380/50DN300412750600*1000*350
