NPS Protein Skimmer

Name: NPS Protein Skimmer
Brand: Guangzhou Chuangdi M & E Technology Co., Ltd.
Availability: InStock
Rating: 4.4 (1 reviews)

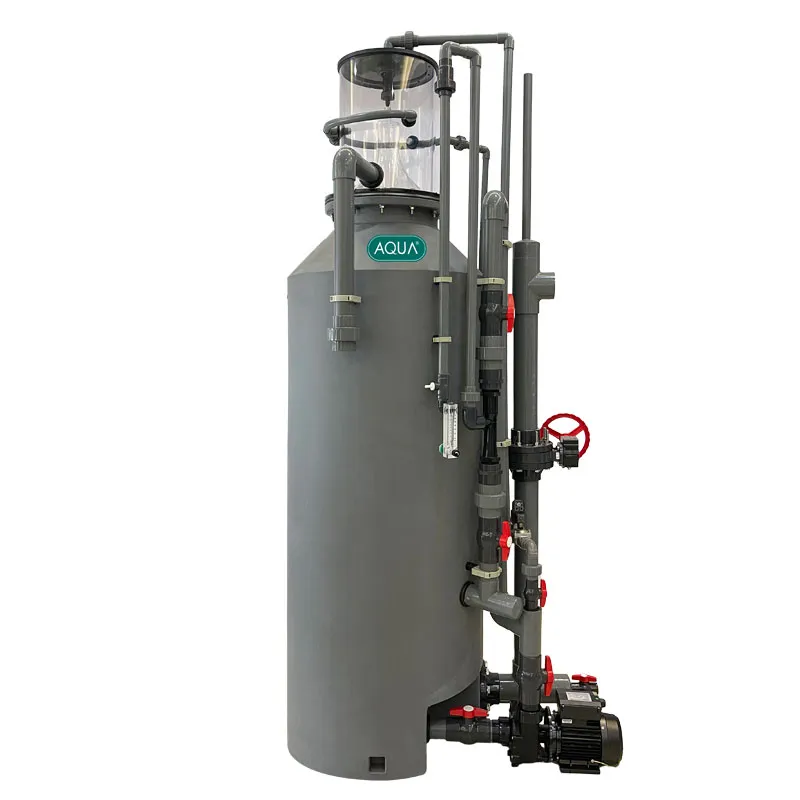

The NPS protein Skimmer combines a unique design injector with the reaction tank in an ingenious way, generating a large amount of tiny bubbles smaller than 1mm. This enables it to efficiently remove organic substances from the filtration system before they are decomposed into harmful substances such as NH3/NH4, thereby reducing the biological filtration load. It features a powerful and efficient organic matter separation function, low energy consumption, and low space requirement. And it is suitable for both seawater and freshwater. Besides, it has the efficacy of an ozone contact tower, If work with the ozone generator, residual ozone remover and ORP automatic control system together, it can achieve the best results. Additionally, it is easy to install, has strong adaptability, is convenient for maintenance, and ensures clean water quality.

Inquire Now >> DOWNLOAD PDF >>



Features of NPS Protein Skimmer

Integrated system, no additional assembly required.
Adaptable to fresh water and sea water environments, and has flushing capabilities.
HDPE(high density polyethylene) rotational molding, UV and corresion resistant.
The top cover can be removed for easy maintenance.
Large volume, ensuring water retention time is more than 2 minutes.

Application of NPS Protein Skimmer

1.Fish farming pond

Used for factory-based high-density aquaculture, it efficiently removes leftover feed and feces, and reduces ammonia nitrogen and nitrite.

2. Saltwater hatchery

Suitable for saltwater hatcheries, it inhibits the reproduction of vibrio bacteria and improves the survival rate and health of young organisms.

3. Oceanarium and aquarium

Applied in oceanarium and aquarium, it maintains water transparency and stability, and ensures the living environment for display organisms.

4. Aquaculture wastewater treatment

Combined with ozone system to treat aquaculture wastewater, it degrades organic matter and realizes the reuse of treated water for energy conservation and environmental protection.

Specification of NPS Protein Skimmer

Model	Design Flow (Retention Time 120S)	Design Flow (Retention Time 90S)	Bottom Diameter	Height	Jet Pump (Included)	Number of Backwash/ Solenoid Valves	Volume	Water Inlet Size	Water Outlet Size
	Design Flow (Retention Time 120S)	Design Flow (Retention Time 90S)	Bottom Diameter	Height	Jet Pump (Included)	Number of Backwash/ Solenoid Valves	Volume
	(m³/h)	(m³/h)	(mm)	(mm)	(pcs)	(pcs)	(L)
NPS420	7	9	420	2134	1 unit*1.1kW	2 sets*50W	226	DN40	DN50
NPS550	14	18	550	2515	1 unit*1.1kW	2 sets*50W	452	DN50	DN80
NPS730	24	32	730	2591	1 unit*1.5kW	2 sets*50W	797	DN50	DN80
NPS950	40	54	950	2565	1 unit*1.5kW	2 sets*50W	1350	DN80	DN100
NPS1350	84	112	1350	2794	1 unit*1.5kW	2 sets*50W	2800	2*DN80	DN150
NPS1650	166	222	1650	3658	2 units*1.5kW	2 sets*50W	5540	2*DN100	DN200
NPS2134	282	376	2134	3658	4 units*1.5kW	2 sets*50W	9407	2*DN150	DN300
