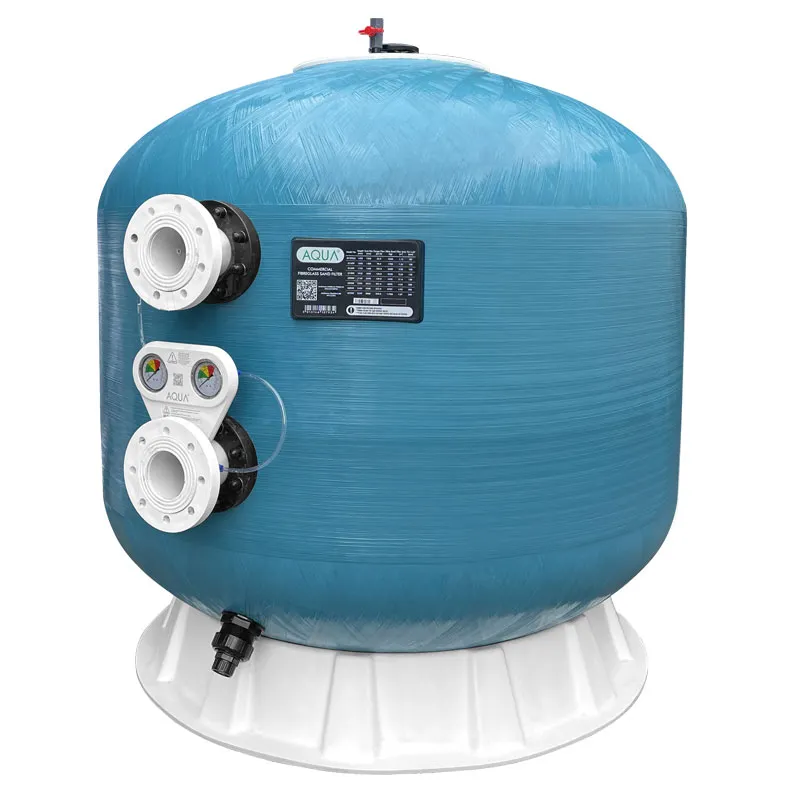

Q Commercial Sand Filters

Name: Q Commercial Sand Filters
Brand: Guangzhou Chuangdi M & E Technology Co., Ltd.
Availability: InStock
Rating: 4.4 (1 reviews)

The Q commercial sand filter features an anti-UV fiberglass tank body, which is highly resistant to chemical corrosion and durable. It can be equipped with a sight glass or manhole for easy and visual maintenance. It can also be fitted with a lateral or nozzle plate to eliminate dead corners in filtration, ensuring more uniform and thorough water purification. Additionally, the nozzle plate system design, combined with an automatic air release valve, enables a 25% water-saving during backwashing, while achieving automatic air release without manual operation. It is suitable for various commercial swimming pools, landscape pools, and other scenarios, balancing filtration efficiency, water conservation performance, and maintenance convenience.

Inquire Now >> DOWNLOAD PDF >>



Features of Q Commercial Sand Filters

Maximum working pressure: 250Kpa/36psi/2.5bar, 400Kpa/58psi/4.0bar(Optional).
Maximum temperature: 50℃.
Factory testing pressure: 400kpa/58psi(4.0bar), 600kpa/86psi(6.0bar).
Anti-UV protective layer of fiber glass wound reinforced filter tank.
Integral structural polyester fiber glass bases for superior tank support.
Fully pressure tested at the factory.
Metric or imperial piping flanges available.
Vertical design consumes small space footprint.
Suitable for any filter media.

Application of Q Commercial Sand Filters

1. Hotel swimming pool

360° nozzle plate eliminates dead corners, suitable for 2000㎡ water area, backwashing saves water by 25%.

2. Water park

Corrosion-resistant tank body resists chlorine erosion, real-time observation through sight glass, high-flow filtration ensures continuous operation.

3. Hot spring club

Automatic air release valve for degassing, nozzle plate system for uniform water distribution, combined with mineral filter media to improve water quality.

4. Commercial complex swimming pool

Manhole design for easy maintenance, lateral system suitable for irregular pool shapes, flexible installation.

5. Public swimming pool

Laser-cut filter tube structure, filtration efficiency increased by 30%, meets high-frequency usage requirements.

Specification of Q Commercial Sand Filters

Mode	Filter Dia	Connection Size	Filter Area	Flow Rate	Flow	Silica Sand	Silica Sand	Height

	(mm)		(m²)	(m/h)	(m³/h)	0.5-0.8mm(kg)	1-2mm(kg)	(mm)
Q1200(L)	1200	DN80	1.13	50	57.0	750	300	1420
Q1400	1400	DN100	1.54	50	77.0	1200	500	1670
Q1600	1600	DN100	2.01	50	101.0	1850	750	1750
Q1800	1800	DN150	2.54	50	127.0	2500	1050	1950
Q2000	2000	DN150	3.14	50	157.0	3300	1150	2130
Q2350	2350	DN200	4.34	50	217.0	5000	1800	2350
Q2500	2500	DN200	4.90	50	245.0	6000	2200	2450
Q3000	3000	DN200	7.07	50	354.0	8000	3300	2650

Model	φD(mm)	H(mm)	A(mm)	B(mm)	C(mm)	E(mm)	F(mm)	K(mm)	M(mm)	N(mm)	φP(mm)	T(mm)	W(mm)
Model	φD(mm)	H(mm)	A(mm)	B(mm)	C(mm)	E(mm)	F(mm)	K(mm)	M(mm)	N(mm)	φP(mm)	T(mm)	W(mm)
Q1200(L)	1200	1420	560	180	340	60	740	180*180	1150	80	1010	600	300
Q1400	1400	1670	650	190	350	60	800	300*400	1250	80	1240	700	300
Q1600	1600	1750	680	215	450	60	870	300*400	1450	80	1450	800	320
Q1800	1800	1950	730	215	550	60	910	300*400	1650	80	1610	850	320
Q2000	2000	2130	800	240	550	60	930	300*400	1700	80	1800	900	350
Q2350	2350	2350	940	240	600	60	1070	300*400	1800	80	2010	1000	400
Q2500	2500	2450	960	240	600	60	1100	300*400	1900	80	2010	1050	400
Q3000	3000	2650	1020	350	600	60	1130	300*400	2150	80	2650	1100	450
