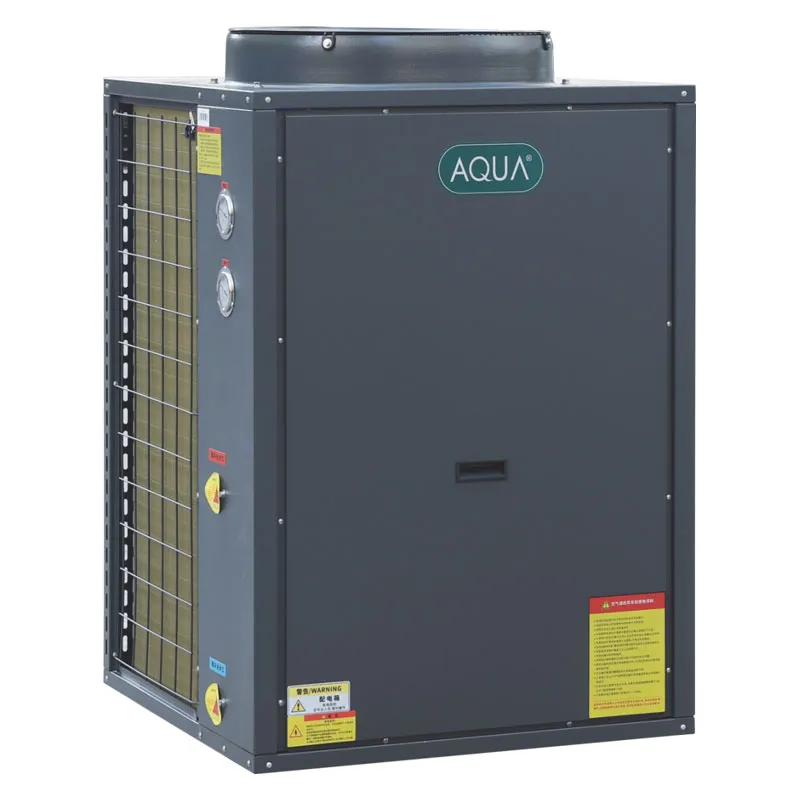

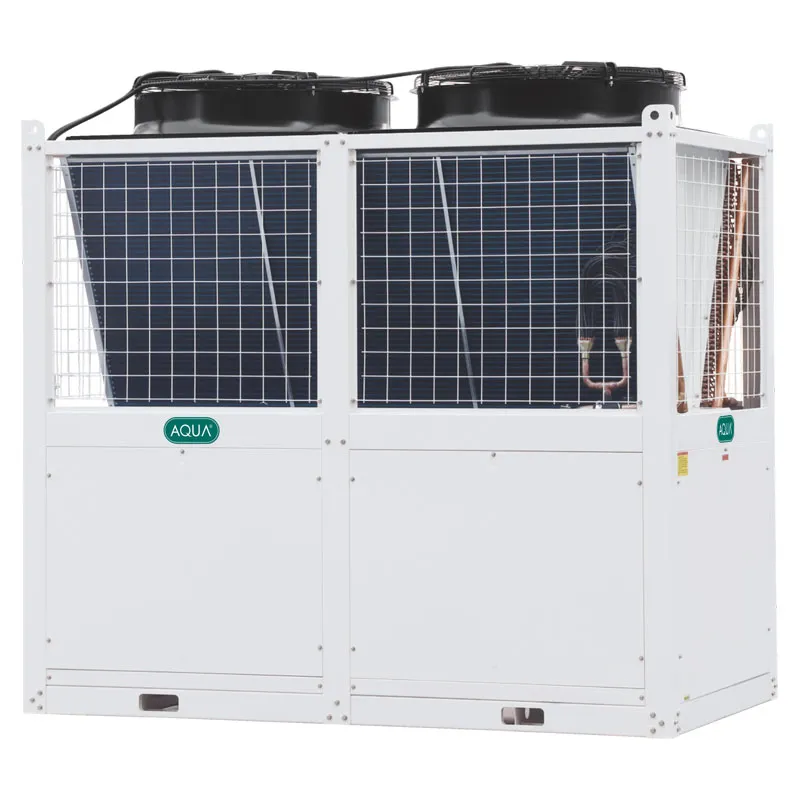

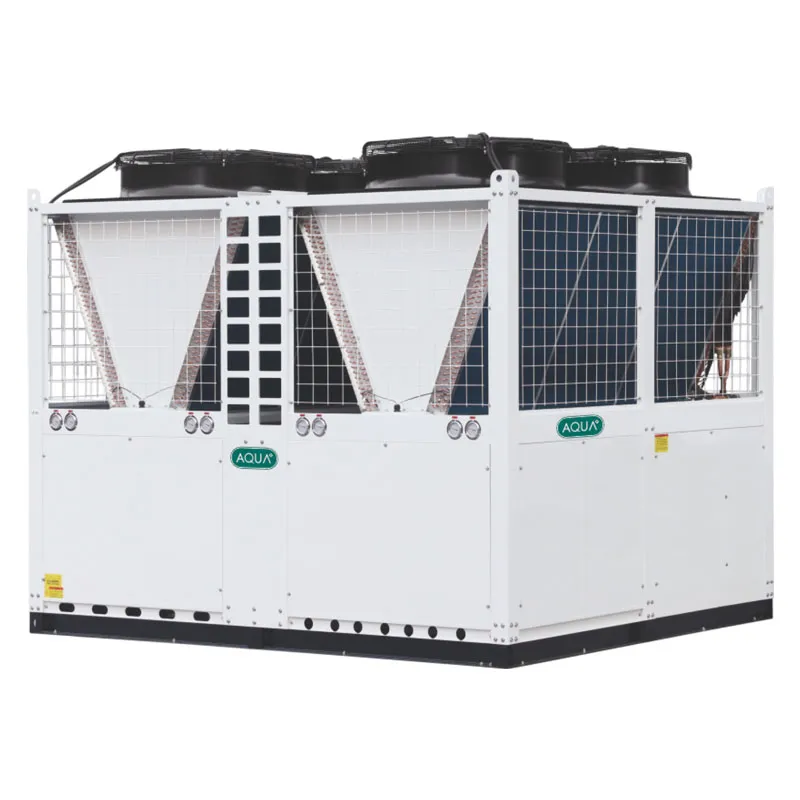

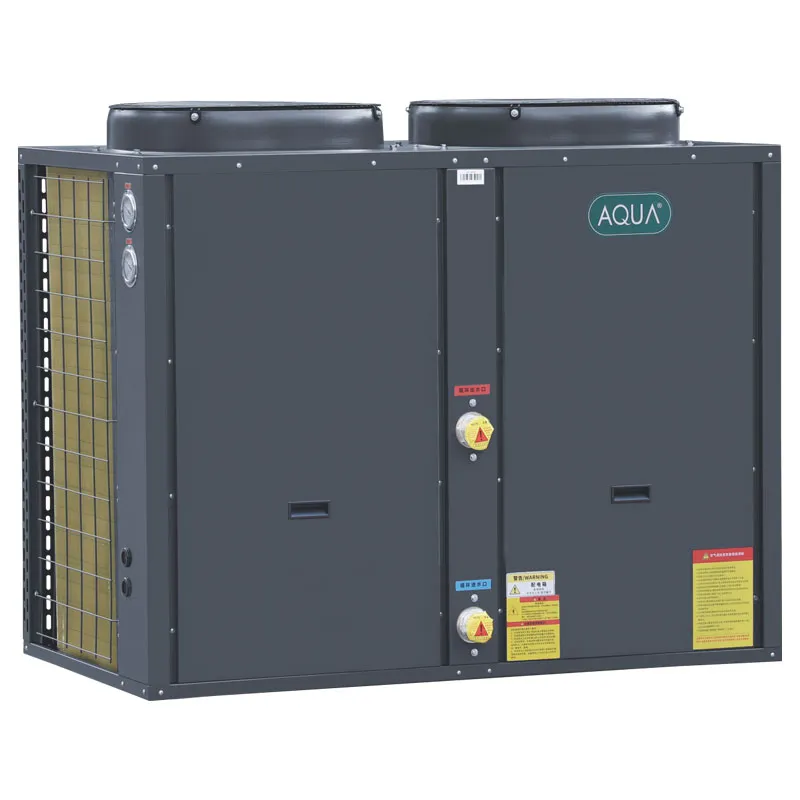

LHP Hot Spring Heat Pump

Name: LHP Hot Spring Heat Pump
Brand: Guangzhou Chuangdi M & E Technology Co., Ltd.
Availability: InStock
Rating: 4.4 (1 reviews)

It uses high-efficiency pure titanium heat exchange tubes and advanced heat pump technology, offering temperature resistance, corrosion resistance, quiet operation, and intelligent constant-temperature defrosting. Furthermore, it features multiple built-in protections for safety and reliability. In addition, it is adaptable to special water qualities, available in both normal and low-temperature types to meet the needs of diverse hot spring scenarios.

Inquire Now >> DOWNLOAD PDF >>



Features of LHP Hot Spring Heat Pump

High efficiency heat exchange and compact structure: The heat exchange tube uses a high-efficiency external threaded pure titanium tube. And the heat exchange coefficient is more than twice that of traditional shell and tube type.
The refrigerant inlet and outlet are ingeniously sealed to avoid water leakage: The seals are made of high temperature resistant materials, which can withstand high temperature of 200°C and low temperature of -20°C.
Corrosion resistance, long service life, heat exchanger is not easy to be blocked: Engineering plastics are more resistant to all kinds of corrosion and have a longer service life compared to metals. The water side volume of the heat exchanger is more than twice that of the plate heat exchanger, and is more resistant to dirt and blockage.
Energy and power saving: The international advanced heat pump technology is adopted, the power consumption is only 20% of the electric boiler, and the operation cost is low.
Heating control: Automatic heating, automatic constant temperature, automatic defrosting, with water supply and return control, electronic expansion valve control.
Multiple protection, safe and reliable: Built-in water flow protection, compressor exhaust temperature protection, compressor high and low pressure protection, compressor over current protection, power supply phase error protection (applicable to three-phase models), winter anti-freezing protection.
Quiet operation: Low-noise compressor and fan design are adopted to ensure quiet operation of the unit.

Application of LHP Hot Spring Heat Pump

1. Hotel/Resort Hot Spring Pools

Corrosion-resistant, intelligent heating system reaches a maximum water temperature of 50℃, providing a comfortable soaking experience with low energy consumption.

2. SPA/Bath Centers

Adaptable to complex water qualities, efficiently producing large quantities of hot water to meet demand.

3. Commercial/Private Swimming Pools

Stable operation, rapid heating and precise temperature control, energy-saving and quiet.

4. Health and Wellness Centers

Provides suitable hot water temperatures to address special water qualities, enhancing the wellness experience.

Specification of LHP Hot Spring Heat Pump

Normal Temperature Type

Model			LHP-030	LHP-050	LHP-070	LHP-100	LHP-120	LHP-150	LHP-200	LHP-250	LHP-300	LHP-400II	LHP-500II	LHP-400IV	LHP-500IV	LHP-600IV


Ratod Heating (A20℃/ W55℃)	Hoating Copaclfy	kW	10.5	18.8	26.3	37.5	45.0	56.3	75.0	93.8	112.5	150.0	187.5	150.0	187.5	225.0
	COP	W/W	4.65	4.65	4.65	4.65	4.65	4.65	4.65	4.65	4.65	4.65	4.65	4.65	4.65	4.65
	Power	kW	2.3	4.0	5.6	8.1	9.7	12.1	16.1	20.2	24.2	32.3	40.3	32.3	40.3	48.4
	Current	A	10.3	6.9	9.6	13.8	16.5	20.7	27.5	34.4	41.3	55.1	68.8	55.1	68.8	82.6
Power Supply		/	220V/-/50Hz	380V/3N-/50Hz
Max. Current Input		A	17	13	17	23	26	32	47	58	72	90	105	90	105	120
Max. Power Input		kW	3.7	7.3	9.5	12.9	14.5	17.9	26.3	32.4	40.3	50.3	58.7	50.3	58.7	67.1
Compressor Type		/	Rotary	Fully enclosed scroll
Wator Prossuro Drop		kPa	30	36	43	45	45	52	58	58	62	65	68	65	68	68
Noise		dB(A)	58	60	65	68	68	70	70	72	72	73	73	73	73	75
Connecrion Size		mm	DN50 Male thread	DN50 Male thread	DN50 Male thread	DN50 Male thread	DN50 Male thread	DN65 Flange	DN65 Flange	DN80 Flange	DN80 Flange	DN100 Flange	DN100 Flange	DN100 Flange	DN100 Flonge	DN100 Flange
Water Flow		m³/h	5	8	10	12	16	20	30	35	40	58	65	58	65	75
Refrigerant		/	R410A
Operating Temperature Range		℃	-12-45
Dimensions(L°W"H)		mm	768709868	8057501068	8708101268	14507801073	14507801223	15809001660	192610562190	212611062200	212611062200	245013022260	245013022260	200621722228	200621722228	200621722228
Weight		kg	105	150	160	220	265	385	515	595	710	815	982	985	1170	1380

Rated Heoting Condition: Outdoor Ambient Temp. (DB/WB): 20℃/15℃, Initial Inlet Woter Temp. 15℃, and Stop Inlet water Temp. 50℃.
The data above is for reference only. For model specifications, please refer to the nameplate on the unit.

Low Temperature Type

Model			LHP-030(E)	LHP-050(E)	LHP-070(E)	LHP-100(E)	LHP-120(E)	LHP-150(E)	LHP-200(E)	LHP-250(E)	LHP-300(E)	LHP-400II(E)	LHP-500II(E)	LHP-400IV(E)	LHP-500IV(E)	LHP-600IV(E)


Heating Condition 1 (A20℃/W50℃)	Heating Capaciry	kw	10.5	18.8	26.3	37.5	45.0	56.3	75.0	93.8	112.5	150.0	1875	150.0	187.5	225.0
	COP	w/w	4.65	4.65	4.65	4.65	4.65	4.65	4.65	4.65	4.65	4.65	4.65	4.65	4.65	4.65
	Power	kw	2.3	4.0	5.6	8.1	9.7	12.1	16.1	20.2	24.2	32.3	403	32.3	40.3	48.4
	Current	A	10.3	6.9	9.6	13.8	16.5	20.7	27.5	34.4	41.3	55.1	68.8	55.1	68.8	826
Heating Condition 2 (A7℃/W50℃)	Heating Copacify	kW	8.4	15.0	20.8	30.1	35.9	45.0	59.8	74.8	89.8	119.8	149.5	119.8	149.5	179.5
	COP	W/W	3.71	3.71	3.71	3.71	3.71	3.71	3.71	3.71	3.71	3.71	3.71	3.71	3.71	3.71
	Power	kw	2.3	4.0	5.6	8.1	9.7	12.1	16.1	20.2	24.2	32.3	40.3	32.3	40.3	48.4
	Current	A	10.3	6.9	9.6	13.9	16.5	20.7	27.5	34.4	41.3	55.1	68.8	55.1	68.8	82.6
Heating Condition 3 (A-12℃/ W50℃)	Heating Copacify	kw	6.0	10.6	14.8	21.4	25.4	31.9	42.3	53.0	63.6	84.9	106.1	84.9	106.1	127.3
	COP	W/W	2.63	2.63	2.63	2.63	2.63	2.63	2.63	2.63	2.63	2.63	2.63	2.63	2.63	2.63
	Power	kW	2.3	4.0	5.6	8.1	9.7	12.1	16.1	20.2	24.2	32.8	40.3	32.3	40.3	48.4
	Current	A	10.4	6.9	9.6	13.9	16.5	20.7	27.5	34.4	41.3	55.1	68.9	55.1	68.9	826
Power Supply		/	220V/- /50Hz	380V/3N-/50Hz
Max. Current Input		A	17	13	17	23	26	32	47	58	72	90	105	90	105	120
Max. Power Input		kW	3.7	7.3	9.5	12.9	14.5	17.9	26.3	32.4	40.3	50.3	58.7	50.3	58.7	67.1
Compressor Type		/	Rotary	Fulyenclosed scrol
Water Pressure Drop		kPa	30	36	43	45	45	52	58	58	62	65	68	65	68	68
Noise		dB(A)	58	60	65	68	68	70	70	72	72	73	73	73	73	75
Connection Size		mm	DN50 Male ihread	DN50 Male threod	DN50 Male threod	DN50 Male threod	DN50 Male threod	DN65 Flange	DN65 Fange	DN80 Flange	DN80 Fange	DN100 Flange	DN100 Ange	DN100 Flange	DN100 Flonge	DN100 Flange
Water Flow		m³/h	5	8	10	12	16	20	30	35	40	58	65	58	65	75
Refrigerant		/	R410A
omparioure Range		℃	-30~45
Dimen sions(LWH)		mm	768709868	8057501068	8708101268	14507801073	14507801223	15809001660	192610562190	212611062200	212611062200	245013022260	245013022260	200621722228	200621722228	200621722228
Weight		kg	108	155	175	230	275	390	520	595	720	852	1125	1005	1210	1410

Heating Condition 1: Outdoo(DB/WB)Temp. 20℃/15℃, Initial Inlet Water A54 Temp. 15℃, and Stop Inlet Water Temp. 50℃.
Heating Condition 2: Outdoor(DB/WB)Temp. 7℃/6℃, Initial Inlet Water Temp. 5℃, and Stop Inlet Water Temp. 50℃.
Heating Condition 3: Outdoor(DB/WB)Temp. -12℃/-14℃, Initial Inlet Water Temp. 15℃ and Stop Inlet Water Temp. 50℃.
The data above is fo reference only. For model specificatiors, please refer to the namepbte on the urit.
